Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Bulk
Product Status Obsolete
Current - Output / Channel 700mA
Outputs and Type 6, Non-Isolated
Voltage - Output 24V ~ 48V
Features Dimmable
Voltage - Input 90 ~ 305 VAC
Supplied Contents Board(s)
Utilized IC / Part HVLED001A
Base Product Number STEVAL
Other Names -1138-STEVAL-ILL070V4,497-17684
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Win Source Part Number 1283826-STEVAL-ILL070V4
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL070V4 CAD Model

Description

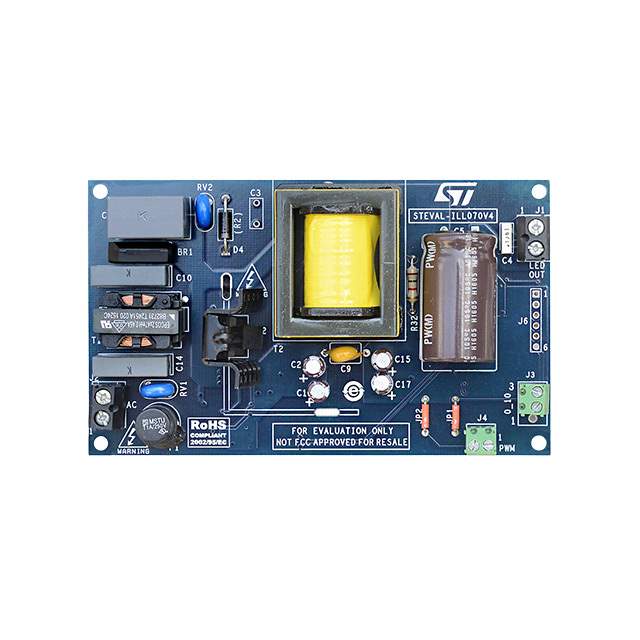

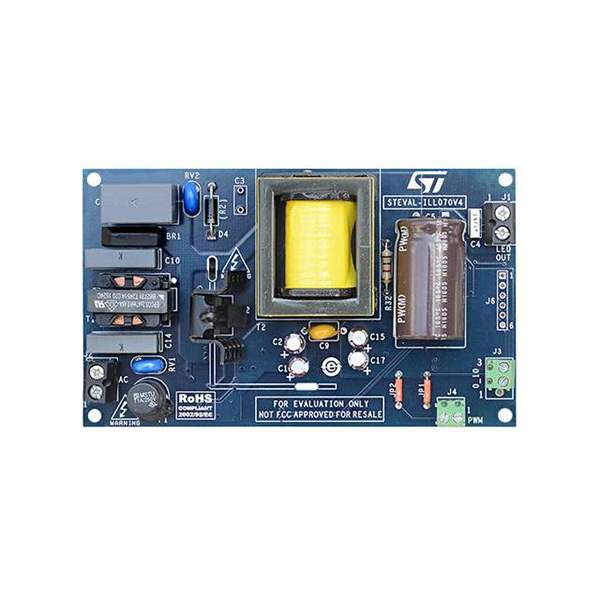

The STEVAL-ILL070V4 is a highly sophisticated LED array driver evaluation board, designed and manufactured by STMicroelectronics. This advanced platform is specifically tailored for driving LED arrays using the LED6001 chip, a monolithic, step-down, current-mode PWM driver. It is an ideal solution for those looking to develop and test high-efficiency LED lighting applications.

Key Features

  • Integrated LED6001 PWM dimmable LED driver IC
  • Wide input voltage range from 4.5 V to 38 V
  • Up to 3 A output current capability
  • Adjustable output current through external resistor or voltage
  • PWM dimming and enable inputs
  • Thermal shutdown and overcurrent protection features
  • Efficient thermal management with dedicated heatsink
  • RoHS compliant and designed to meet international safety standards

Applications

The STEVAL-ILL070V4 is versatile and can be utilized for a wide range of applications, including:

  • General-purpose LED lighting
  • Architectural LED lighting
  • LED backlighting for LCD displays
  • Street lighting
  • Emergency lighting
  • Industrial lighting

Design Advantages

This evaluation board offers numerous design advantages. It provides a compact, yet powerful option for driving LED arrays with high reliability and efficiency. The onboard LED6001 driver ensures smooth and flicker-free dimming capabilities, which are essential for modern lighting solutions. Moreover, the built-in safety features such as thermal shutdown and overcurrent protection, ensure long-term reliability and safety of your LED applications.

Support and Resources

STMicroelectronics provides extensive support for the STEVAL-ILL070V4, including detailed documentation, reference designs, and application notes. Engineers and designers can access these resources to accelerate the development process and bring their LED lighting solutions to market faster.

Whether you are developing innovative lighting systems or exploring the possibilities of LED technology, the STEVAL-ILL070V4 evaluation board is an excellent starting point to realize your projects with efficiency and confidence.
