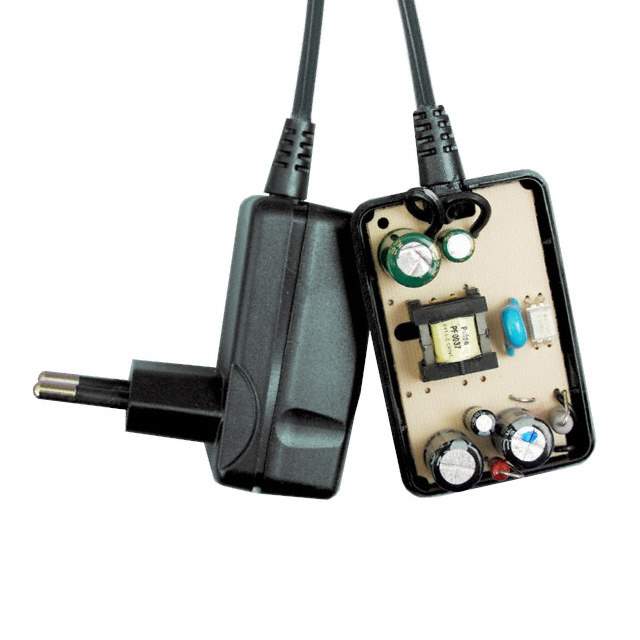

Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr STMicroelectronics
Series VIPER™
Package Box
Product Status Obsolete
Main Purpose AC/DC, Primary Side
Outputs and Type 1, Isolated
Power - Output 3.6 W
Voltage - Output 6V
Current - Output 600mA
Voltage - Input 85 ~ 264 VAC
Regulator Topology Flyback
Frequency - Switching 60kHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part VIPer12A
Other Names 497-5084
Standard Package 1
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1284164-STEVAL-ISA014V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ISA014V1 CAD Model

Description

STEVAL-ISA014V1 - STMicroelectronics

The STEVAL-ISA014V1 is a highly efficient, fully integrated power supply module from STMicroelectronics designed specifically for ease of use and rapid prototyping. This product is part of the evaluation series that allows designers and engineers to test and assess the features and capabilities of STMicroelectronics' advanced power solutions.

This evaluation board is built around the L5980, a step-down monolithic power switching regulator capable of delivering up to 1.5 A of continuous current at output voltages from 0.8 V to VIN. With a wide input voltage range from 4.5 V to 36 V, the STEVAL-ISA014V1 is versatile for a range of applications, including industrial control systems, embedded systems, and consumer electronics.

Key features of the STEVAL-ISA014V1 include:

  • High efficiency, thanks to the L5980's low R<sub>DS(on) and optimized switching topology.
  • Adjustable output voltage, allowing for a wide range of output configurations.
  • Thermal protection and overcurrent protection, ensuring safe operation under various conditions.
  • Frequency synchronization, which allows the reduction of radiated system noise that is critical for RF and sensitive analog applications.
  • Compact size and minimal external components requirement, making it suitable for space-constrained applications.

The STEVAL-ISA014V1 is also equipped with an enable pin, which provides a simple on/off control and allows power sequencing. Its under-voltage lockout (UVLO) feature ensures that the device operates at the correct input voltage. Additionally, the soft-start function limits inrush current during startup, contributing to system reliability.

For developers and engineers looking to quickly implement a power solution or to evaluate the L5980 regulator, the STEVAL-ISA014V1 provides a convenient and flexible platform. Its performance and features can be easily tested and integrated into a variety of power-sensitive applications, making it an invaluable tool in the design and development process.
