Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation and Demonstration Boards and Kits
Mfr STMicroelectronics
Package Bulk
Product Status Obsolete
Type Power Management
Function Power Factor Correction
Embedded No
Utilized IC / Part L6562A
Supplied Contents Board(s)
Other Names STEVALISA102V1,497-13062,-497-13062
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1284491-STEVAL-ISA102V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ISA102V1 CAD Model

Description

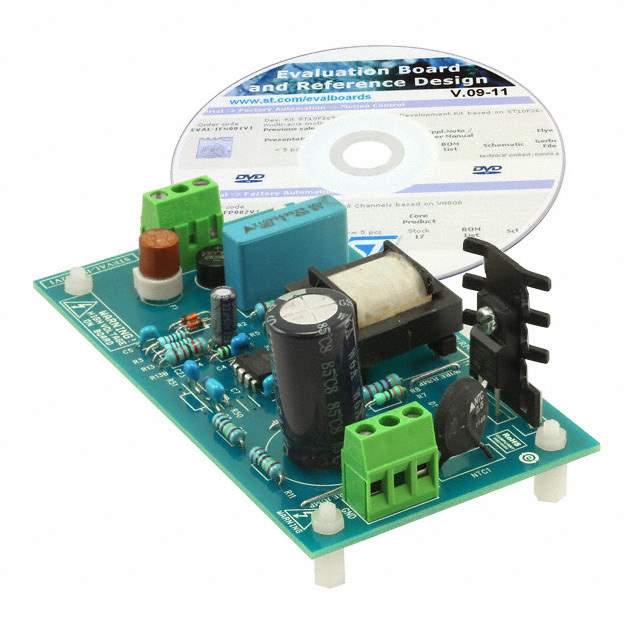

STEVAL-ISA102V1 - STMicroelectronics' Evaluation Board

The STEVAL-ISA102V1 is an advanced evaluation board from STMicroelectronics, designed to showcase the capabilities of the VIPerPlus high-voltage converters. This product is part of the VIPerPlus series, which are energy-saving, off-line high-voltage converters integrating a PWM controller and an 800 V avalanche-rugged power MOSFET.

This evaluation board is specifically tailored to demonstrate the efficiency and performance of the VIPer0P, a zero-power, high-voltage converter with extremely low power consumption. The STEVAL-ISA102V1 is an ideal solution for developers looking to create cost-effective and energy-efficient power supplies for a wide range of applications, including home appliances, air conditioning, metering, and power adapters.

The board operates over a wide input voltage range and is designed to deliver a fixed output voltage with excellent regulation, making it a versatile tool for testing and development. With its built-in features, such as overcurrent and thermal protection, the STEVAL-ISA102V1 ensures safe operation under various conditions, enhancing the reliability of the end application.

Key features of the STEVAL-ISA102V1 include:

  • Input voltage range from 85 to 265 VAC, suitable for universal mains operation
  • Fixed output voltage optimized for the intended application
  • Low standby power consumption, compliant with energy-saving regulations
  • Built-in brown-out protection for enhanced reliability
  • Overvoltage, overcurrent, and thermal protection
  • Compact size and minimal external components required

The evaluation board comes equipped with a comprehensive set of documentation, including a user manual, schematic, bill of materials, and PCB layout, to facilitate rapid development and ease of use. With the STEVAL-ISA102V1, engineers and designers can quickly prototype and test their power supply solutions, significantly reducing time-to-market for their products.

Invest in the STEVAL-ISA102V1 evaluation board to experience the superior performance, robustness, and efficiency of STMicroelectronics' VIPerPlus power converters.
