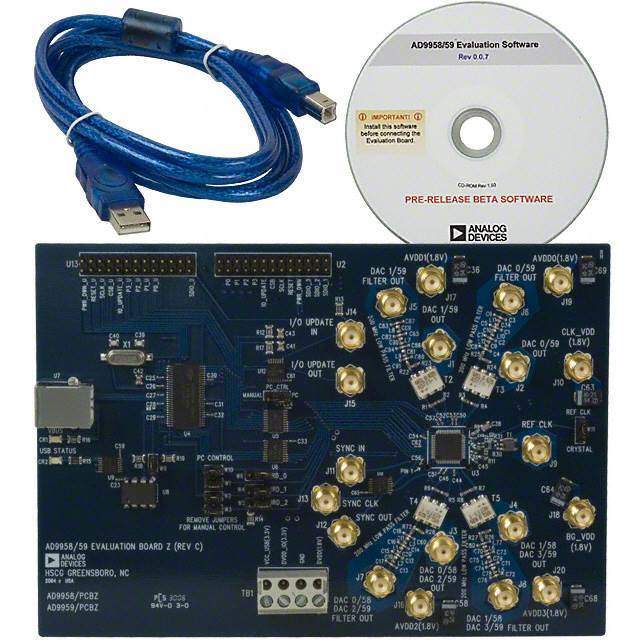

AD9959/PCBZ Evaluation Board from Analog Devices Inc.

The AD9959/PCBZ is a highly integrated evaluation board designed for the AD9959, a quad-channel, 500 MSPS, 14-bit, 1.8 V CMOS Direct Digital Synthesis (DDS) device from Analog Devices Inc. This evaluation board provides a robust platform for engineers and designers to explore the features and performance of the AD9959, making it an indispensable tool for rapid prototyping and testing in a wide range of applications such as communications, instrumentation, and radar systems.

Key Features:

• Quad DDS Channels: The board supports four independent DDS channels, enabling complex modulation and signal generation schemes.
• High-Speed DAC: Each channel is equipped with its own high-speed 14-bit DAC, capable of converting digital signals into high-quality analog waveforms up to 500 MSPS.
• Flexible Clocking: The AD9959/PCBZ offers multiple clocking options, including an onboard crystal oscillator and the ability to accept an external clock signal for synchronization with other devices.
• Programmable Output: Users can easily program the frequency, phase, and amplitude of the output signal, providing maximum flexibility for a variety of use cases.
• USB Interface: The board includes a USB interface for connection with a PC, allowing for easy control and programming using the provided software.
• Power Supply: The evaluation board operates on a single 1.8 V power supply, minimizing power consumption and making it suitable for portable applications.

Applications:

• Wireless Communication
• Test and Measurement Equipment
• Signal Generation
• Radar and Navigation Systems

The AD9959/PCBZ evaluation board is an essential development tool that showcases the versatility and power of the AD9959 DDS IC. With its comprehensive feature set and user-friendly interface, it accelerates the design process, allowing for rapid deployment of complex systems with minimized design risk. Whether you are working on high-performance communication systems or precision instrumentation, the AD9959/PCBZ offers a convenient and effective solution for your signal generation needs.
