Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr STMicroelectronics
Series VIPer™ plus
Package Bulk
Main Purpose AC/DC, Primary Side
Outputs and Type 1, Non-Isolated
Power - Output 2.25 W
Voltage - Output 15V
Current - Output 150mA
Voltage - Input 85 ~ 265 VAC
Regulator Topology Buck
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part VIPer0P
Base Product Number STEVAL
Other Names 497-16452,-1138-STEVAL-ISA179V1
Standard Package 1
RoHS Status Not applicable
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1284183-STEVAL-ISA179V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ISA179V1 CAD Model

Description

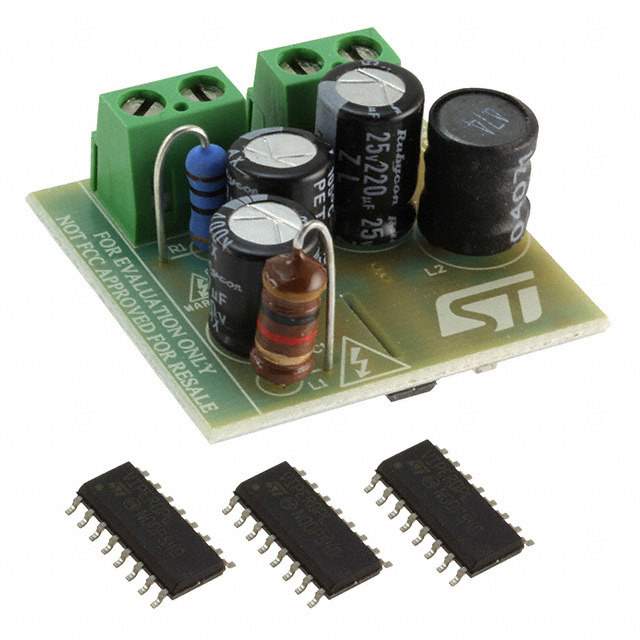

Introducing the STEVAL-ISA179V1 from STMicroelectronics

The STEVAL-ISA179V1 is a state-of-the-art evaluation board designed by STMicroelectronics, a global semiconductor leader known for its innovative approach and cutting-edge technology. This product is part of the expansive STEVAL series, which provides quick and easy solutions for evaluating ST's diverse range of power management ICs and technologies.

At the heart of the STEVAL-ISA179V1 is the advanced ST1S14PHR, a step-down monolithic power switching regulator capable of delivering up to 3 A of current to the load, depending on the application. The regulator operates at a switching frequency of 850 kHz, allowing the use of tiny surface-mount components. Moreover, thanks to its peak-current control architecture, it provides a very low duty cycle operation.

The board operates over a wide input voltage range from 4.5 V to 18 V, making it suitable for a variety of applications, from automotive to industrial. The output voltage is adjustable from 0.8 V to the VIN value, ensuring versatility and adaptability for different circuit requirements.

Designed with efficiency in mind, the STEVAL-ISA179V1 features an enable function that can be used to reduce power consumption in standby mode. It also includes overcurrent and thermal protection, safeguarding the device and the load from potential damage caused by abnormal operating conditions.

The compact and optimized layout of the STEVAL-ISA179V1 is engineered for excellent thermal performance and minimal EMI emissions. It is an ideal tool for design engineers looking to test and prototype power supply solutions that require a reliable and high-performance voltage regulator.

Whether you're working on a new power supply design or looking to integrate a robust step-down regulator into your existing application, the STEVAL-ISA179V1 evaluation board is a perfect choice to expedite your development process, reduce time to market, and achieve high efficiency in your end product.

For more information, datasheets, and technical support, visit the STMicroelectronics product page.
