Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - Sensors
Mfr STMicroelectronics
Series MEMS
Package Box
Product Status Obsolete
Sensor Type Gyroscope, 2 Axis
Sensing Range ±100°/sec
Interface Analog and Digital
Sensitivity 10mV/°/s
Embedded Yes, MCU, 8-Bit
Supplied Contents Board(s)
Utilized IC / Part LPY410AL
Other Names 479-10731,-497-10731,497-10731,479-10731,STEVALMKI103V1
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 7A002B
HTSUS 8473.30.1180
Win Source Part Number 1283662-STEVAL-MKI103V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-MKI103V1 CAD Model

Description

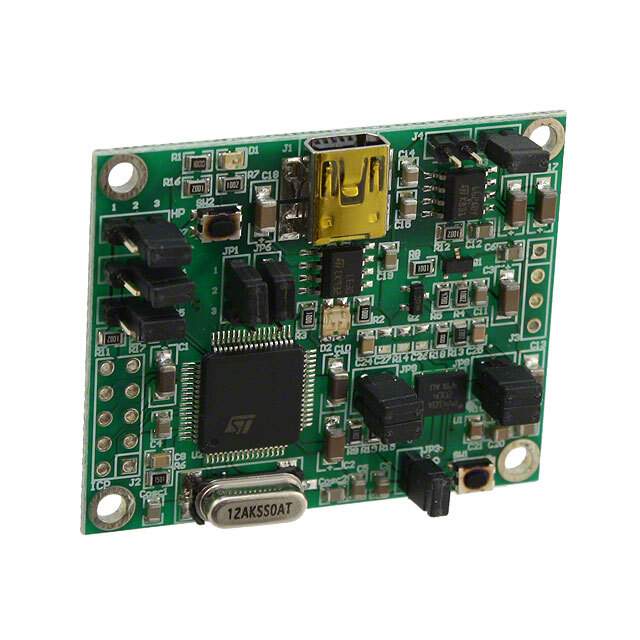

STEVAL-MKI103V1 Motion MEMS and Environmental Sensor Evaluation Board

The STEVAL-MKI103V1 is a comprehensive evaluation platform designed by STMicroelectronics to showcase the capabilities of its advanced Motion MEMS and Environmental Sensors. This board is a part of the ST's portfolio of SensorTile modules, which are compact and complete sensor solutions that can be easily integrated into a wide array of applications.

At the heart of the STEVAL-MKI103V1 lies a powerful suite of sensors including a high-performance 3-axis digital accelerometer, a 3-axis digital gyroscope, a 3-axis digital magnetometer, a digital barometer, and a temperature sensor. This combination of sensors enables the board to deliver precise and real-time feedback on motion, environmental conditions, and magnetic heading, making it ideal for applications in the fields of wearable sensors, gaming and virtual reality input devices, GPS navigation systems, and industrial and robotics control systems.

The evaluation board is designed for plug-and-play functionality and is compatible with the ST's Unico GUI software, which allows for easy configuration of the sensor parameters, as well as data visualization and logging. The STEVAL-MKI103V1 connects to a host system via a high-speed USB interface, ensuring fast data transfer rates and minimal latency.

For developers and engineers looking to rapidly prototype and test their sensor applications, the STEVAL-MKI103V1 offers a versatile and reliable platform. The board is also compatible with the STM32Cube software suite, which includes a comprehensive set of embedded software libraries and examples for STM32 microcontrollers, further simplifying the development process.

The STEVAL-MKI103V1 is not only a testament to STMicroelectronics' commitment to innovation but also an invaluable tool for professionals seeking to harness the power of MEMS and environmental sensors in their next project. With its robust sensor suite, user-friendly interface, and extensive software support, the STEVAL-MKI103V1 stands out as a superior solution for sensor evaluation and development.
