Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - Sensors
Mfr STMicroelectronics
Package Bulk
Sensor Type Accelerometer, 3 Axis
Sensing Range ±2g, 4g, 8g, 16g
Interface I2C, Serial, SPI
Voltage - Supply 1.62V ~ 3.6V
Supplied Contents Board(s)
Utilized IC / Part IIS2DLPC
Base Product Number STEVAL
Other Names 497-18324
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8471.80.1000
Win Source Part Number 1283729-STEVAL-MKI191V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-MKI191V1 CAD Model

Description

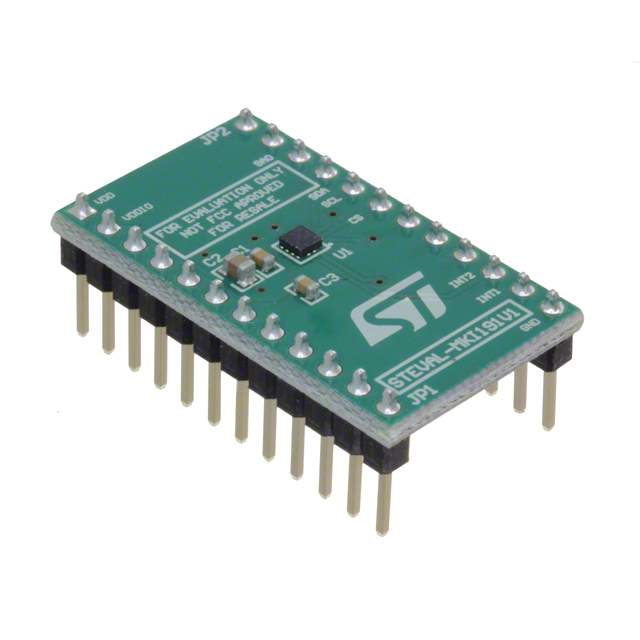

The STEVAL-MKI191V1 is an advanced evaluation board presented by STMicroelectronics, designed to provide users with a comprehensive platform to assess the performance and capabilities of its onboard inertial sensor. This evaluation board is an essential tool for developers and engineers who are looking to integrate motion and positional tracking into their designs with precision and reliability.

Key Features

  • High-Performance Inertial Sensors: The board includes state-of-the-art accelerometers and gyroscopes, delivering high-resolution data and sensitivity for a wide range of motion detection applications.
  • Wide Operating Voltage Range: The STEVAL-MKI191V1 is designed to function across a broad spectrum of power supplies, ensuring compatibility with diverse system designs and requirements.
  • Plug-and-Play Connectivity: Equipped with a standard DIL 24-pin socket, the board can easily be connected to an STM32 Nucleo motherboard, facilitating quick integration and prototyping.
  • Comprehensive Software Suite: It comes with a robust software package, including drivers and libraries, to help developers rapidly implement and test various functionalities.
  • Extensive Application Support: Ideal for applications such as IoT devices, gaming, navigation systems, and industrial monitoring, the board is versatile for a multitude of use cases.

Technical Specifications

The STEVAL-MKI191V1 features a compact and durable design, ensuring it can be deployed in challenging environments. Its technical specifications are tailored to provide precise and reliable data, essential for developing sophisticated motion-based applications. The board's sensors offer excellent stability over time and temperature variations, making it a reliable choice for critical applications.

Design and Development Support

STMicroelectronics provides extensive support for the STEVAL-MKI191V1, including detailed documentation, reference designs, and direct access to technical support teams. This ensures that developers can maximize the potential of the evaluation board and reduce time-to-market for their products.

Conclusion

The STEVAL-MKI191V1 from STMicroelectronics is a feature-rich evaluation platform that offers unparalleled performance for testing and developing with inertial sensors. Its robust design, coupled with comprehensive software support, makes it an ideal choice for professionals seeking to create advanced motion-sensitive applications with confidence and efficiency.
