Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - Sensors
Mfr STMicroelectronics
Package Bulk
Sensor Type Accelerometer, 3 Axis
Sensing Range ±2g, 4g
Interface I2C, Serial, SPI
Voltage - Supply 1.62V ~ 3.6V
Supplied Contents Board(s)
Utilized IC / Part AIS2DW12
Base Product Number STEVAL
Other Names -1138-STEVAL-MKI206V1,497-19792
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1283725-STEVAL-MKI206V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-MKI206V1 CAD Model

Description

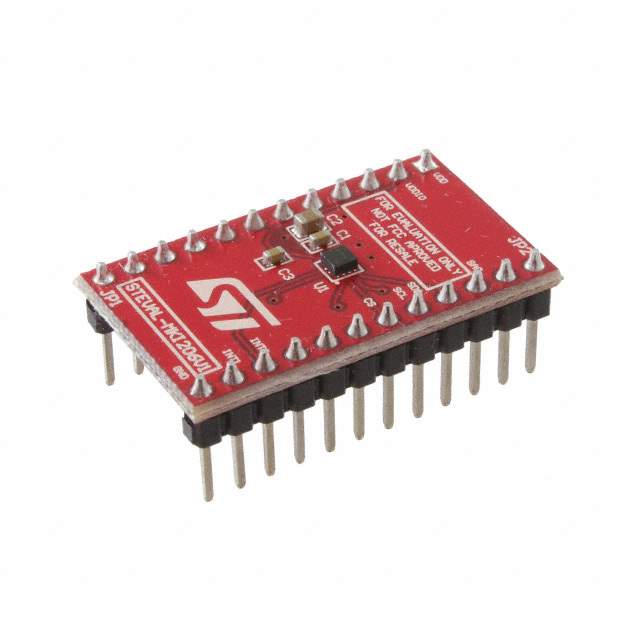

STEVAL-MKI206V1 - Inertial Module Board from STMicroelectronics

The STEVAL-MKI206V1 is a high-performance inertial module board designed by STMicroelectronics to offer advanced motion sensing capabilities. This compact and versatile board is ideal for a wide range of applications, including but not limited to, industrial navigation systems, robotics, drone stabilization, and wearable sensor platforms.

The core component of the STEVAL-MKI206V1 is the LSM6DSOX iNEMO inertial module, which integrates a 3D digital accelerometer and a 3D digital gyroscope into a single package. This state-of-the-art sensor provides high-resolution motion detection while maintaining low power consumption, making it suitable for battery-operated devices.

Key features of the STEVAL-MKI206V1 include:

  • LSM6DSOX iNEMO inertial module with a 3D accelerometer and 3D gyroscope
  • Wide range of user-selectable full scales for both accelerometer (±2/±4/±8/±16 g) and gyroscope (±125/±250/±500/±1000/±2000 dps)
  • Advanced pedometer, step detector, and step counter functions for fitness applications
  • Significant Motion Detection, Tilt Detection, and Free-Fall Detection for enhanced motion analysis
  • Embedded temperature sensor and FIFO for data buffering
  • Multiple operating modes for power efficiency: low-power, normal, and high-performance
  • Comprehensive development ecosystem with the STEVAL-MKI109V3 motherboard and software tools for easy prototyping

The board is equipped with a DIL 24-pin socket which ensures easy integration into your existing projects and a quick setup for evaluation. The STEVAL-MKI206V1 is supported by the Unico GUI (Graphical User Interface) software, which provides a user-friendly platform for configuring the inertial module's parameters and extracting sensor data in real-time.

Whether you are developing applications that require precise motion tracking or experimenting with inertial measurement technologies, the STEVAL-MKI206V1 offers a reliable and flexible solution that harnesses STMicroelectronics' expertise in sensor design and performance.
