Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Box
Product Status Obsolete
Current - Output / Channel 1.5A
Outputs and Type 1, Non-Isolated
Voltage - Output 2.7V ~ 5.5V
Features Camera Flash, I²C, and USB Interface
Voltage - Input 2.7V ~ 5.5V
Supplied Contents Board(s)
Utilized IC / Part STCF06
Other Names STEVALTLL006V1,497-10051
Standard Package 1
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1283876-STEVAL-TLL006V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-TLL006V1 CAD Model

Description

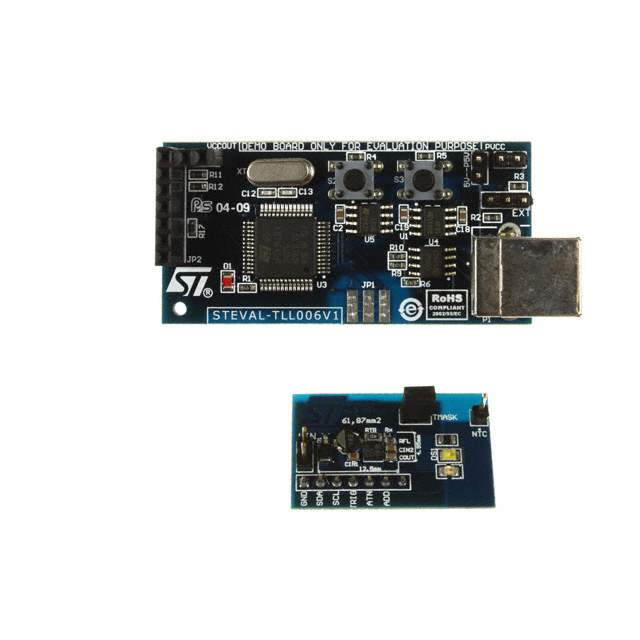

STEVAL-TLL006V1 - LED Driver Evaluation Board from STMicroelectronics

The STEVAL-TLL006V1 is a sophisticated evaluation board presented by STMicroelectronics, designed to showcase the performance and capabilities of their LED1202 12-channel LED driver. This evaluation board is an excellent tool for engineers and designers to explore the features of the LED1202 in a practical setting, making it ideal for applications such as LED lighting, backlighting systems, and various signal and indicator lights.

At the heart of the STEVAL-TLL006V1 lies the LED1202, a 12-channel low quiescent current LED driver capable of providing an adjustable output current through each channel. The driver supports a 5.5 V power supply voltage and offers a 1.5% (typ.) channel-to-channel accuracy. This accuracy is crucial for applications requiring uniform brightness and color consistency across multiple LEDs.

The evaluation board is designed to be user-friendly and accessible, with several features that facilitate easy testing and integration:

  • Independent PWM Dimming: Each channel can be independently dimmed with 12-bit PWM resolution, allowing for precise control over the brightness and power consumption of the connected LEDs.
  • I²C Interface: The LED1202 is equipped with a fast-mode I²C interface, enabling seamless communication with a microcontroller or other I²C-compatible devices.
  • Flexible Configuration: Users can configure the board through jumpers and test points, which provides versatility in setting up different LED configurations and experimenting with various scenarios.
  • Thermal Protection: Built-in thermal shutdown and overcurrent protection ensure the longevity and reliability of both the evaluation board and the LEDs it drives.
  • Compact Design: The STEVAL-TLL006V1 is designed with a compact form factor, making it easy to integrate into existing systems or use in space-constrained applications.

Whether for professional or educational purposes, the STEVAL-TLL006V1 evaluation board is an invaluable asset for anyone looking to develop or test LED lighting solutions. Its comprehensive feature set and ease-of-use make it a go-to choice for exploring the capabilities of the LED1202 driver in real-world applications.
