Products specifications

Category Development Boards, Kits, Programmers>Evaluation and Demonstration Boards and Kits
Mfr STMicroelectronics
Series VIPower™
Package Box
Type Power Management
Function Motor Controller/Driver
Embedded Yes, MCU, 8-Bit
Utilized IC / Part VNH5019A
Primary Attributes Single-H-Bridge Driver
Supplied Contents Board(s)
Base Product Number STEVAL
Other Names -1138-STEVAL-VNH5019A
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1284445-STEVAL-VNH5019A
Ultra Librarian 3D Model Ultra Librarian STEVAL-VNH5019A CAD Model

Description

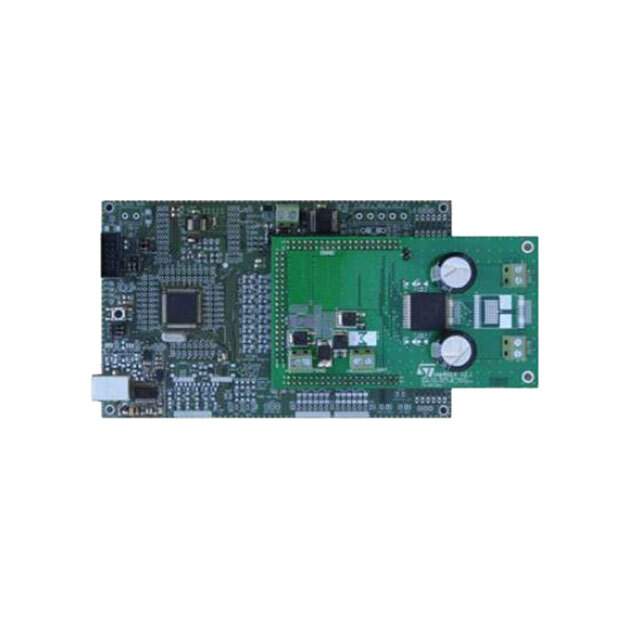

STEVAL-VNH5019A Motor Driver Evaluation Board by STMicroelectronics

The STEVAL-VNH5019A is a fully integrated evaluation board designed by STMicroelectronics to showcase the capabilities of the VNH5019A-E, a high-power full-bridge motor driver integrated circuit. This robust evaluation platform is geared towards engineers, designers, and hobbyists looking to explore motor control applications that require high current and high voltage operations.

Key Features

  • Operational voltage range from 5.5 V to 24 V, catering to a wide array of motor types and ensuring compatibility with various control systems.
  • Peak current up to 30 A, making it suitable for driving high-power motors in demanding applications.
  • Current and temperature protection features, which provide a safeguard against overcurrent and overheating, thus enhancing the longevity and reliability of the application.
  • Easy-to-use PWM interface, which allows for precise control over motor speed and direction, offering flexibility in various control schemes.
  • Compact design with all necessary components for quick setup and immediate operation, ideal for rapid prototyping and testing.

Applications

The STEVAL-VNH5019A is versatile in its applications, suitable for use in:

  • Automotive and transportation, including electric power steering, engine cooling fans, and window lifters.
  • Industrial automation, such as conveyor belts, automated guided vehicles, and robotics.
  • Consumer electronics, particularly in high-performance computing cooling systems or electrically driven household appliances.

Support and Resources

STMicroelectronics provides extensive support for the STEVAL-VNH5019A evaluation board, including detailed documentation, reference design files, and technical support through their online resources. Users can access datasheets, application notes, and design guides to fully exploit the capabilities of the board and the VNH5019A-E motor driver.

With its robust design, comprehensive protection features, and ease of use, the STEVAL-VNH5019A evaluation board is an excellent tool for professionals and enthusiasts alike to develop and test motor control solutions in a variety of applications.
