Products specifications

Categories Integrated Circuits (ICs)
Manufacturer STMicroelectronics
Packaging Reel - TR
Part Status Obsolete(EOL)
Switch Circuit SPDT
Number of Circuits 2
On-State Resistance (Maximum) 800 mOhm
Channel-to-Channel Matching (ΔRon) 60 mOhm
Operating Supply Voltage 1.65 V ~ 4.3 V
Switch Time (Ton, Toff) (Maximum) 50ns, 30ns
-3db Bandwidth 50MHz
Charge Injection 35pC
Channel Capacitance (CS(off), CD(off)) 5pF
Current - Leakage (IS(off)) (Maximum) 10nA
Crosstalk -54dB @ 100kHz
Operating Temperature Range -55°C ~ 125°C (TA)

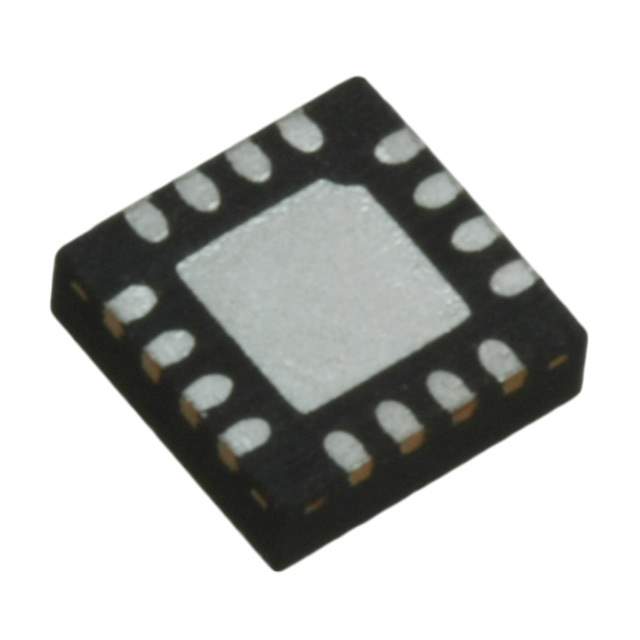

Package 16-VFQFN Exposed Pad
Manufacturer Package 16-QFN (3x3)
Win Source Part Number 1260997-STG3680QTR
Manufacturer Homepage www.st.com
Family Name STG3680
Introduction Date January 21, 2004
ECCN EAR99
Estimated EOL Date Obsolete
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian STG3680QTR CAD Model

Description

The STG3680QTR is a high-performance, dual single-pole double-throw (SPDT) switch IC designed and manufactured by STMicroelectronics. This advanced switch is ideal for precision signal routing in a variety of applications, including data acquisition systems, communication devices, and audio/video signal switching. With its compact QFN-16 package, it offers a space-saving solution for modern electronic devices.

Key Features

  • Low On-Resistance: The STG3680QTR boasts a low on-resistance (typically around 0.6Ω), ensuring minimal signal attenuation and power loss, which is crucial for maintaining signal integrity in high-performance applications.
  • Wide Operating Voltage Range: It operates over a wide voltage range of 1.65V to 4.3V, making it versatile for use in both low-voltage and standard systems.
  • High-Speed Switching: The device supports high-speed switching, which is essential for applications that require fast signal routing and minimal transition times.
  • ESD Protection: Integrated Electrostatic Discharge (ESD) protection circuits safeguard the device from static damage, ensuring reliability and longevity in harsh environments.
  • Break-Before-Make Switching: This feature prevents signal shorting by ensuring that the connection to one pole is broken before a connection to the other pole is made, which is particularly important in audio and data routing applications to prevent cross-talk and signal disruption.

Applications

The STG3680QTR is suitable for a broad range of applications, including:

  • Mobile phones and personal digital assistants (PDAs)
  • Portable media players and audio signal routing
  • Data acquisition systems and test equipment
  • Communication devices and network switches

Conclusion

With its low on-resistance, high-speed operation, and robust ESD protection, the STG3680QTR from STMicroelectronics is an excellent choice for designers looking to implement reliable and efficient signal switching in their electronic designs. Its compact form factor and wide operating voltage range further enhance its utility in a multitude of applications, making it a versatile component in the modern electronics landscape.
