ON Semiconductor NLAS4717EPFCT1G Product Overview

The NLAS4717EPFCT1G from ON Semiconductor is a high-performance analog switch designed to deliver both high-speed switching and low-power operation for a wide range of applications. This advanced switch integrates a single-pole, double-throw (SPDT) configuration, making it versatile for signal routing and multiplexing tasks in complex electronic systems.

Key Features

• Low On-Resistance: The device boasts an exceptionally low on-resistance (RON) of typically 0.6 ohms, which minimizes signal attenuation and ensures high signal integrity.
• Wide Voltage Range: Operating over a broad voltage range from 1.65V to 4.3V, the NLAS4717EPFCT1G is suitable for battery-operated devices and can easily interface with various logic levels.
• High Bandwidth: With a bandwidth of over 300 MHz, this switch is capable of handling high-speed signals without significant distortion, making it ideal for data transmission and video signal applications.
• Low Power Consumption: Designed for energy efficiency, the device features a low quiescent current, which helps in extending battery life in portable applications.
• Break-Before-Make Switching: It incorporates break-before-make switching mechanism that prevents signal overlap and ensures clean, glitch-free signal transitions.
• ESD Protection: The NLAS4717EPFCT1G is equipped with built-in ESD protection circuitry, safeguarding the device from electrostatic discharges and enhancing its durability and reliability.

Applications

The ON Semiconductor NLAS4717EPFCT1G is ideally suited for a variety of applications, including but not limited to:

• Audio and video signal routing
• Data acquisition systems
• Cellular phones and PDAs
• Portable media players
• Communication systems
• Medical equipment

Package and Quality

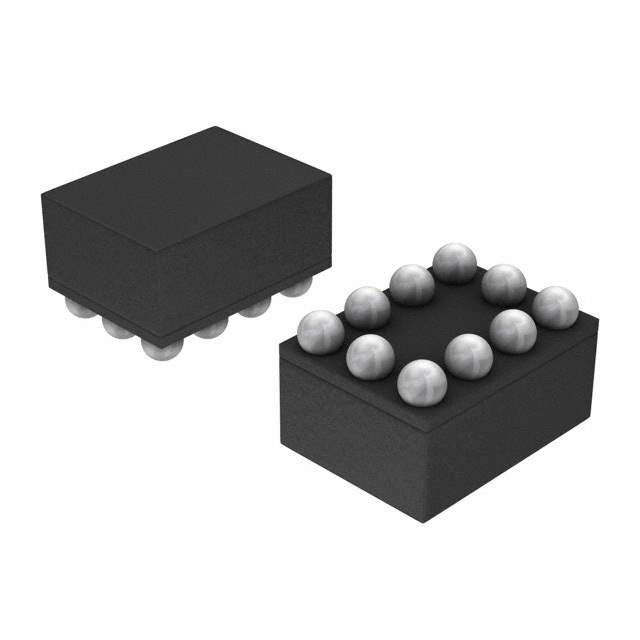

This switch is offered in a compact, lead-free MicroPak™ package, which not only saves space on the PCB but also meets the environmental standards by reducing hazardous substances in electronic devices. Additionally, the NLAS4717EPFCT1G is part of ON Semiconductor's commitment to high-quality products, ensuring that it meets stringent industry standards for performance and reliability.
