The SN74ALVCH16501DGG is a high-performance, universal bus transceiver designed by Texas Instruments. It is part of their advanced low-voltage CMOS (ALVC) range, which is renowned for its high-speed operation while maintaining low power consumption. This particular transceiver is ideal for facilitating bidirectional communication between data buses in a variety of digital applications.

Key Features

• Wide Bus Compatibility: With its universal bus transceiver capabilities, the SN74ALVCH16501DGG is able to interface with 18-bit data buses, making it versatile for numerous system applications.
• High-Speed Operation: The device supports data transfer rates that are consistent with high-speed memory and logic operations, ensuring efficient data handling in critical applications.
• Low-Voltage Operation: Operating at a nominal voltage of 2.5V or 3.3V, the SN74ALVCH16501DGG is optimized for low-voltage systems, reducing power consumption and heat generation.
• Bus-Hold Data Inputs: The transceiver features bus-hold circuitry on its data inputs, eliminating the need for external pull-up or pull-down resistors and simplifying board design.
• Flow-Through Architecture: Designed with a flow-through pinout, the SN74ALVCH16501DGG simplifies the PCB layout by easing the trace routing for signals traveling between buses.

Applications

The SN74ALVCH16501DGG is suitable for a wide range of applications where data integrity and speed are crucial. It is commonly used in:

• Data communication systems
• Networking equipment
• Servers and high-performance computing
• Signal bridging between different voltage domains

Package and Quality

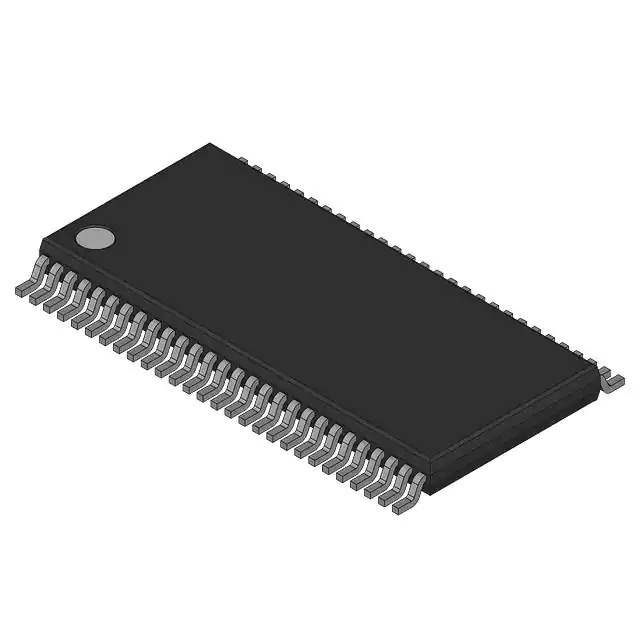

Enclosed in a 56-pin TSSOP (DGG) package, the SN74ALVCH16501DGG is designed to occupy minimal board space while providing robust connectivity options. Texas Instruments is committed to high-quality standards, and this product is no exception, meeting or exceeding industry reliability benchmarks.

Conclusion

With its combination of high-speed performance, low power consumption, and versatile interfacing ability, the SN74ALVCH16501DGG from Texas Instruments represents a reliable solution for designers looking to optimize their digital systems' data handling capabilities.
