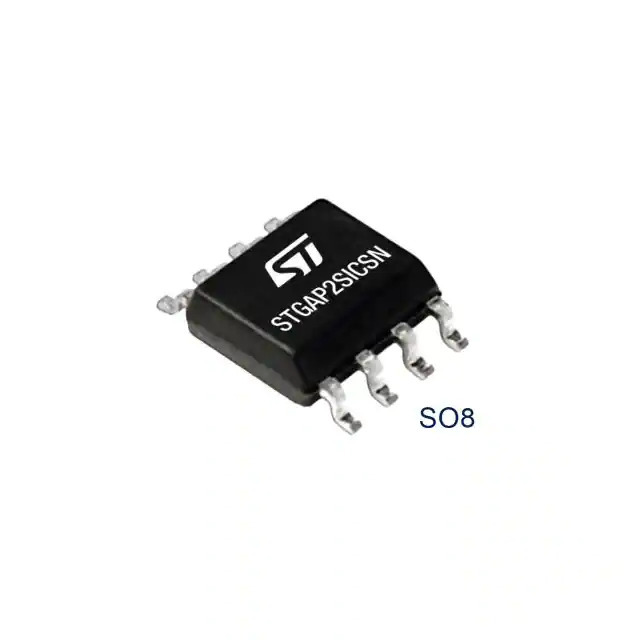

The STGAP2SICSNTR is a cutting-edge gate driver specifically designed by STMicroelectronics to address the requirements of driving Silicon Carbide (SiC) MOSFETs and IGBTs. This advanced gate driver is capable of providing a high-voltage galvanic isolation between the low-voltage control input and the high-power output stage, which is crucial for safety and functionality in high-voltage systems.
Key Features
- High-Voltage Isolation: Integrated galvanic isolation up to 4 kV ensures safe operation and protects the low-voltage side from high-voltage transients.
- High Sink and Source Current: The device is capable of delivering 4 A sink and 4 A source currents, enabling it to effectively drive power transistors at high speeds.
- Wide Operating Voltage Range: The STGAP2SICSNTR operates over a wide range of gate driving voltages, from 15 V to 20 V, accommodating various application requirements.
- Dedicated Shutdown Pin: A dedicated SD pin allows for immediate shutdown in case of a fault, enhancing system safety and reliability.
- UVLO Protection: Under-Voltage Lock-Out (UVLO) for both high-side and low-side prevents the device from operating under insufficient power supply conditions.
- CMOS/TTL Inputs: The gate driver is compatible with CMOS and TTL logic-level inputs, providing flexibility in interfacing with control circuits.
- Robust Design: The STGAP2SICSNTR is designed to withstand harsh environments and is characterized by its ruggedness and reliability.
Applications
The STGAP2SICSNTR gate driver is versatile and can be used in a variety of applications where efficient and reliable high-voltage switching is necessary. It is particularly suited for:
- Industrial Motor Drives
- Power Converters/Inverters
- Switched Mode Power Supplies (SMPS)
- Renewable Energy Systems
- Electric Vehicle (EV) Charging Stations
- High-Voltage Power Management Applications
With its superior performance and protective features, the STGAP2SICSNTR from STMicroelectronics is an excellent choice for designers looking to enhance the efficiency, reliability, and safety of their high-voltage power conversion and motor control systems.
