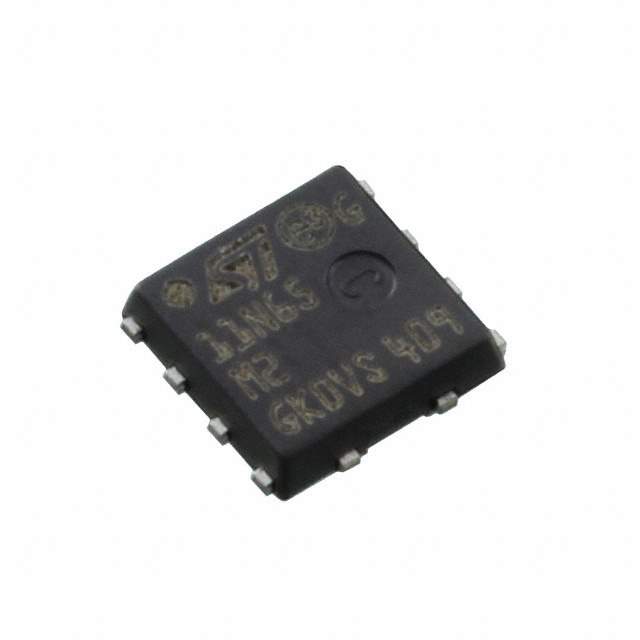

STL11N65M2 - High Efficiency Power MOSFET by STMicroelectronics

The STL11N65M2 is a state-of-the-art power MOSFET designed and manufactured by STMicroelectronics, a leader in semiconductor solutions. This advanced power MOSFET is part of the MDmesh™ M2 series, which is well-known for providing high efficiency in a wide range of applications, including but not limited to, switch-mode power supplies (SMPS), lighting, welding, DC-AC inverters, and automotive applications.

With a drain-source voltage (V<sub>DS) of 650V, the STL11N65M2 offers a robust platform for designers working with high-voltage circuits. The device is characterized by an extremely low on-resistance (R<sub>DS(on)) of just 0.28Ω, which significantly reduces conduction losses and enhances the overall efficiency of the system it is employed in. This low R<sub>DS(on) is achieved through STMicroelectronics' innovative MDmesh™ technology that combines a vertical structure with a proprietary strip layout, leading to a reduction in the R<sub>DS(on) area and higher current handling capabilities.

The STL11N65M2 also boasts a high threshold voltage (V<sub>th) that ranges from 3.0V to 4.0V, providing a good margin against unwanted turn-on due to noise and spurious signals. This feature is particularly important in environments with high levels of electrical interference.

In terms of thermal performance, the STL11N65M2 excels with a maximum junction temperature (T<sub>j) of 150°C. This allows for stable operation even at elevated temperatures, ensuring reliability and longevity of the device. Its power dissipation (P<sub>D) is rated at 125W, which is a testament to its ability to handle high power levels efficiently.

The package of the STL11N65M2 is designed with the end-user in mind. It comes in a surface-mount TO-220FP package, which not only makes it easy to integrate into various PCB designs but also aids in effective heat dissipation. Moreover, the device is compliant with RoHS and Halogen-free standards, making it an environmentally friendly choice for power design engineers.

Overall, the STL11N65M2 from STMicroelectronics is an excellent choice for designers looking for a high-performance, efficient, and reliable power MOSFET that can handle demanding applications while minimizing power losses and thermal challenges.
