Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Tray
Status Active
Core Processor ARM Cortex-M0
Part Core Size 32-Bit
Speed(Frequency) 48MHz
Number of I/O 39
Program Memory Size 64KB (64K x 8)
Program Memory Type FLASH
Data RAM Size 8K x 8
Supply Voltage - Operating 2.4 V to 3.6 V
Data Converters A/D 12x12b
Temperature Range - Operating -40°C to 85°C (TA)
Dimension 48-LQFP
Win Source Part Number 101721-STM32F030C8T6
Family Name STM32F030C8
Introduction Date July 04, 2013
ECCN 3A991.a.2
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2031
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian STM32F030C8T6 CAD Model

Description

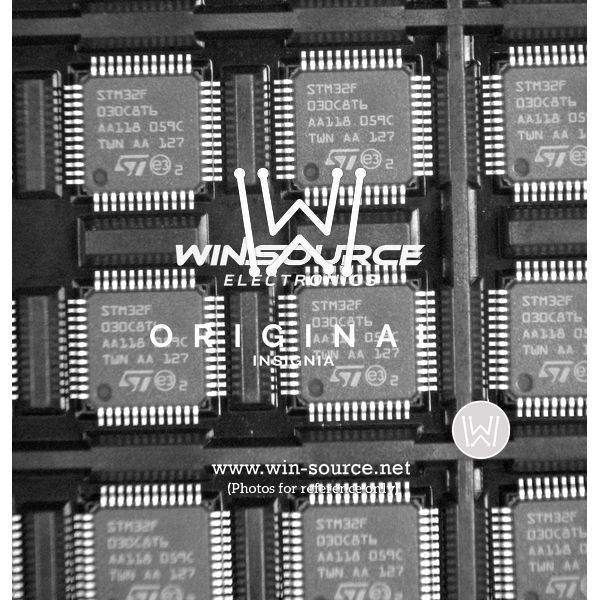

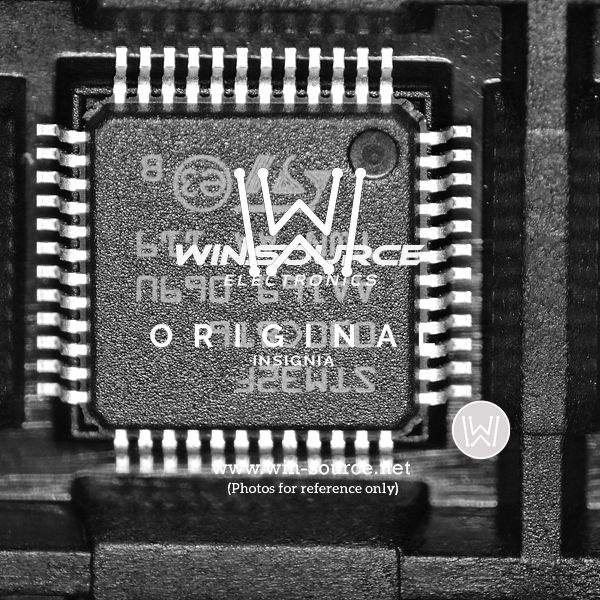

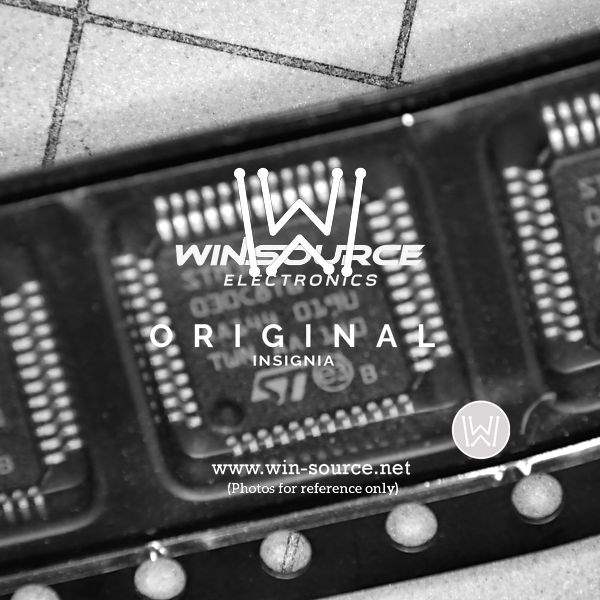

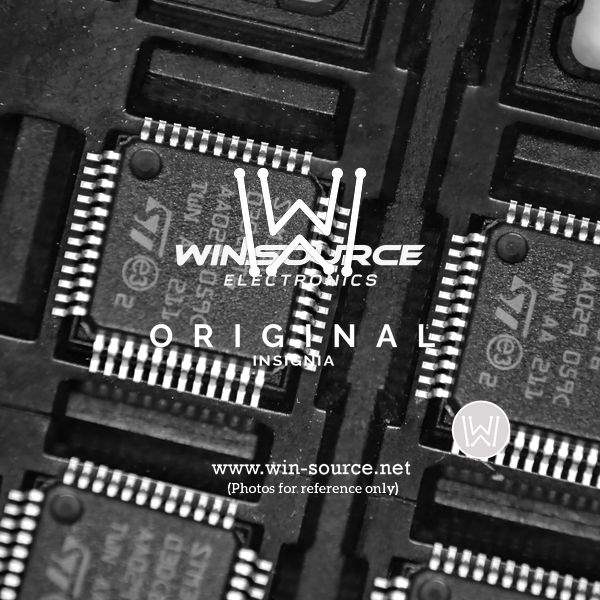

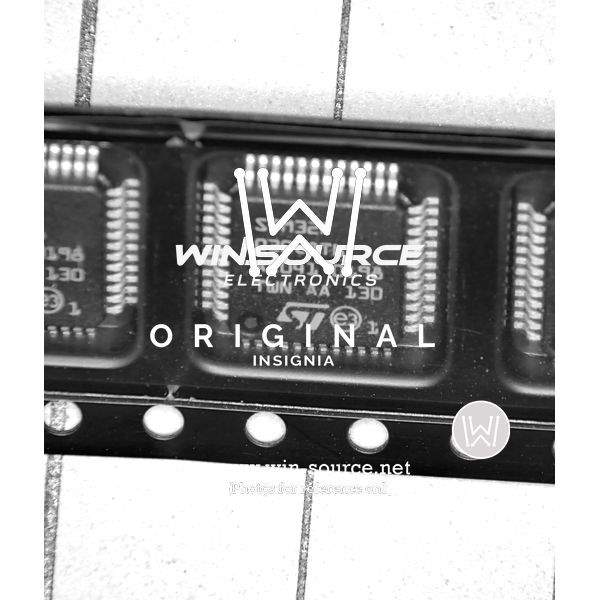

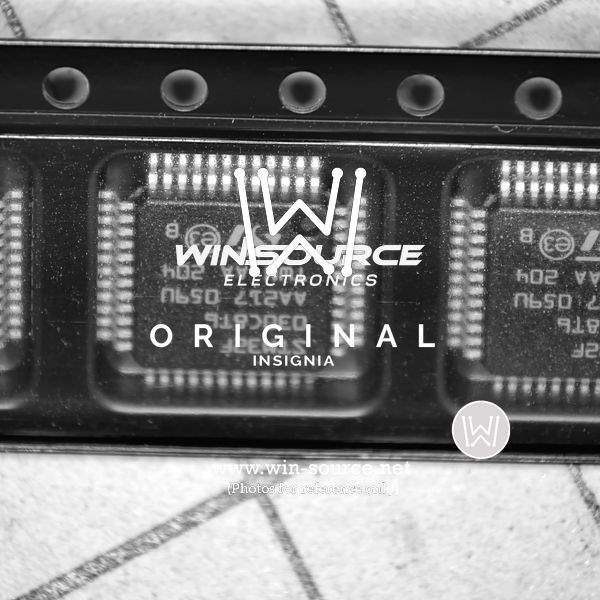

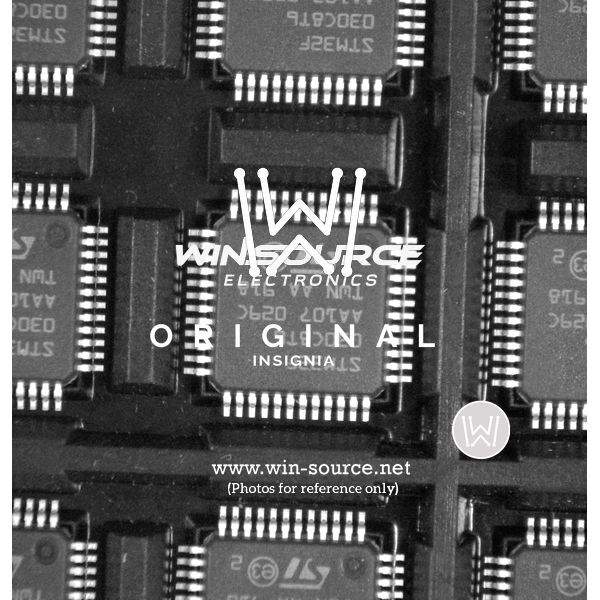

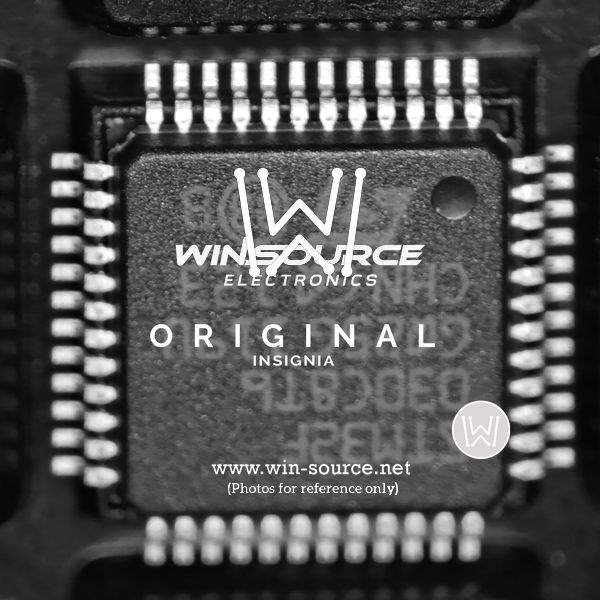

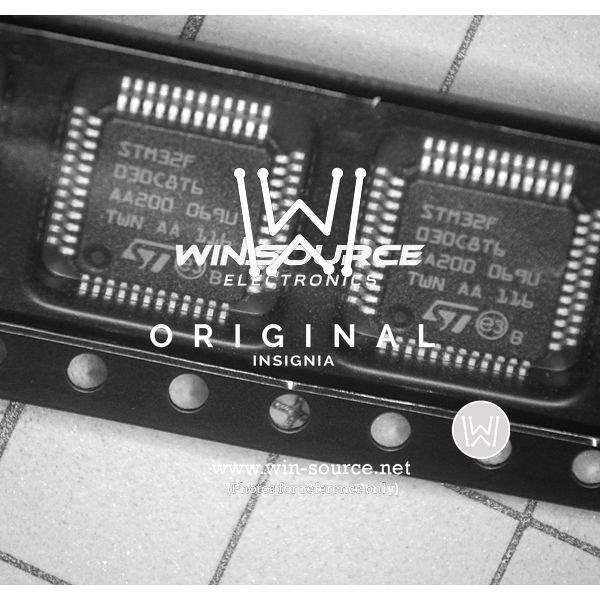

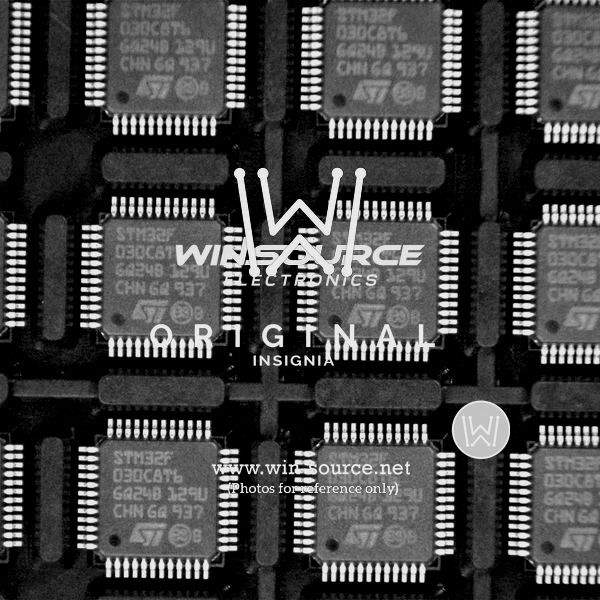

STM32F030C8T6 Microcontroller - STMicroelectronics

The STM32F030C8T6 is a high-performance ARM Cortex-M0 based microcontroller from STMicroelectronics, tailored for cost-sensitive applications that require a balance between performance and power efficiency. This microcontroller is part of the STM32F0 series, designed for a wide range of applications including industrial controls, consumer products, appliances, and smart energy solutions.

Key Features

  • Core: ARM Cortex-M0 processor, running at frequencies of up to 48 MHz.
  • Memory: 64 Kbytes of Flash memory and 8 Kbytes of SRAM, providing ample space for complex applications.
  • I/Os: Up to 37 I/Os, all mappable on 16 external interrupt vectors, allowing for flexible hardware layout and design.
  • Communication Interfaces: Includes I2C, USARTs, SPIs, and CAN interfaces for robust communication capabilities.
  • ADC: 12-bit, 1.0 µs Analog-to-Digital Converter (ADC) with up to 10 channels for precise analog signal acquisition.
  • Timers: Multiple timers including a basic timer, a 32-bit and two 16-bit timers with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input.
  • Debugging: Integrated Serial Wire Debug (SWD) and a comprehensive set of power-saving modes for development ease and energy efficiency.
  • Voltage Range: Operating voltage from 2.4 V to 3.6 V, suitable for battery-powered and embedded applications.
  • Package: Available in a 48-pin LQFP package, ensuring a compact footprint for space-constrained applications.

Applications

The versatility of the STM32F030C8T6 makes it ideal for a variety of applications. Its robust architecture is well-suited for industrial systems such as PLCs, motor control, power management, and sensor systems. In the consumer market, it can be found in home automation devices, gaming peripherals, and personal health gadgets. Additionally, the device's low power consumption and rich communication features make it an excellent choice for smart energy solutions, including smart meters and renewable energy controllers.

Overall, the STM32F030C8T6 by STMicroelectronics provides a cost-effective solution without compromising on the performance and features needed for today's innovative electronic systems.
