Products specifications

Categories Integrated Circuits (ICs)
Manufacturer STMicroelectronics
Series STM32 F1
Packaging Tray
Core Processor ARM Cortex-M3
Core Size 32-Bit
Speed 72MHz
Connectivity CAN, I2C, IrDA, LIN, SPI, UART/USART, USB
Peripherals DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT
Number of I/O 51
Program Memory Size 128KB (128K x 8)
Program Memory Type FLASH
RAM Size 20K x 8
Supply Voltage 2 V ~ 3.6 V
Data Converters A/D 16x12b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 105°C (TA)
Package 64-LQFP
Manufacturer Package 64-LQFP (10x10)
Win Source Part Number 1261394-STM32F103RBT7
Manufacturer Homepage www.st.com
Popularity Medium
Supply and Demand Status Limited
Family Name STM32F103RB
Introduction Date June 01, 2007
ECCN 3A991.a.2
Country of Origin China, Malaysia, Philippines, Taiwan
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian STM32F103RBT7 CAD Model

Description

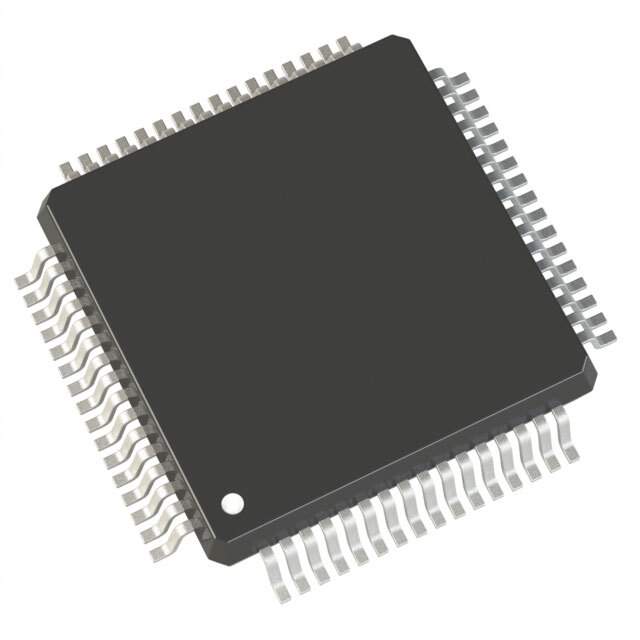

The STM32F103RBT7 is a high-performance ARM Cortex-M3 based microcontroller from STMicroelectronics, designed for embedded applications requiring a blend of power efficiency, performance, and reliability. This microcontroller is part of the STM32F1 series, which has been widely adopted across various industry sectors due to its robust architecture and versatile feature set.

Key Features

  • Core: ARM Cortex-M3 32-bit RISC core operating at a frequency of up to 72 MHz.
  • Memory: Features 128 KB of Flash memory and 20 KB of SRAM, providing ample space for complex applications.
  • I/O Pins: Offers up to 51 I/O ports with various configuration options including pull-up/pull-down resistors, open-drain, and high sink/source capability.
  • Connectivity: Equipped with multiple communication interfaces such as 2 x I2C, 3 x USART, 2 x SPI, and CAN, making it ideal for embedded systems that require robust communication capabilities.
  • Analog: Includes 2 x 12-bit analog-to-digital converters with up to 16 channels, ensuring precise measurement for sensor interfacing.
  • Timers: Contains multiple timers, including 4 general-purpose timers, 2 advanced control timers, and a Real-Time Clock with an independent battery supply.
  • Debugging: Supports in-circuit debugging and programming via JTAG/SWD interfaces, simplifying development and troubleshooting.
  • Power Efficiency: Offers several power modes, including Sleep, Stop, and Standby, to optimize power consumption for battery-powered or energy-sensitive applications.

Applications

The STM32F103RBT7 is a versatile microcontroller suitable for a diverse range of applications such as consumer electronics, industrial control systems, medical devices, and automotive applications. Its robust peripheral set and connectivity options make it an excellent choice for complex and multitasking environments.

Package and Quality

This microcontroller is packaged in an LQFP64 package, which provides a compact footprint while allowing for efficient heat dissipation and easy integration into PCB designs. STMicroelectronics ensures high standards of quality and reliability, making the STM32F103RBT7 a trusted choice for professional and hobbyist projects alike.
