Products specifications

Category Integrated Circuits (ICs)>Embedded - Microprocessors
Mfr STMicroelectronics
Series STM32MP1
Package Tray
Core Processor ARM® Cortex®-A7
Number of Cores/Bus Width 2 Core, 32-Bit
Speed 209MHz, 650MHz
Co-Processors/DSP ARM® Cortex®-M4
RAM Controllers DDR3, DDR3L, LPDDR2, LPDDR3
Graphics Acceleration Yes
Display & Interface Controllers HDMI-CEC, LCD
Ethernet 10/100Mbps (1)
USB USB 2.0 (2), USB 2.0 OTG+ PHY (3)
Voltage - I/O 2.5V, 3.3V
Temperature Range - Operating -40°C ~ 125°C (TA)
Security Features ARM TZ

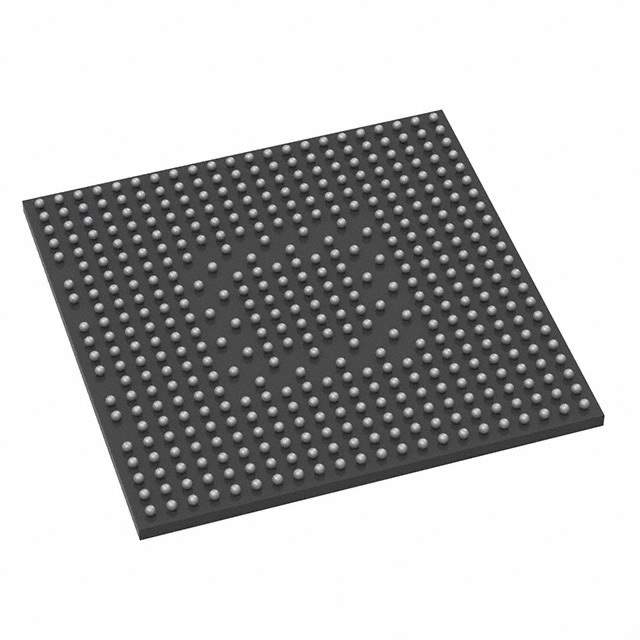

Package / Case 448-LFBGA
Supplier Device Package 448-LFBGA (18x18)
Additional Interfaces CAN, Ethernet, I²C, MMC/SD/SDIO, SPDIF, SPI, UART, USB
Base Product Number STM32
Standard Package 1,500
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.31.0001
Win Source Part Number 1261848-STM32MP153CAA3T
Ultra Librarian 3D Model Ultra Librarian STM32MP153CAA3T CAD Model

Description

STM32MP153CAA3T Microprocessor Overview

The STM32MP153CAA3T is a highly capable microprocessor from STMicroelectronics that is part of the STM32MP1 series. This product is designed to serve a wide array of applications, ranging from industrial to consumer markets, thanks to its rich feature set and high performance. It is particularly well-suited for applications requiring intensive processing power and multitasking capabilities, such as HMI interfaces, industrial control systems, and IoT devices.

Key Features

  • Dual-core configuration with an Arm® Cortex®-A7 core running up to 800 MHz and a Cortex®-M4 core running up to 209 MHz.
  • Advanced 3D GPU: The STM32MP153CAA3T includes a Vivante® 3D GPU that provides powerful graphics capabilities for rich user interface experiences.
  • Flexible memory interface: Supports DDR3L, LPDDR2, LPDDR3, which allows designers to choose the optimal memory solution for their application.
  • Extensive I/Os and peripherals: Featuring a wide range of connectivity options including multiple UARTs, I2C, SPI, CAN, and USB interfaces, as well as a Gigabit Ethernet MAC for networked applications.
  • Robust security features: Integrates a secure boot, TrustZone® for Armv7-M, and cryptographic hardware acceleration to ensure secure operations.
  • High-resolution audio and advanced multimedia support: With its S/PDIF input/output and camera interface, the STM32MP153CAA3T is ideal for multimedia applications.

Applications

The flexibility and high integration of the STM32MP153CAA3T make it suitable for a broad range of applications, including but not limited to:

  • Industrial control systems
  • Human Machine Interface (HMI)
  • Internet of Things (IoT) devices
  • Smart home and building automation
  • Healthcare and medical equipment
  • Consumer electronics

Development Support

STMicroelectronics provides comprehensive development support for the STM32MP153CAA3T, including software tools, development kits, and community resources to help designers accelerate the development process and bring their products to market faster.
