Products specifications

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr STMicroelectronics
Series STM32F4
Package Tray
Core Processor ARM® Cortex®-M4
Core Size 32-Bit Single-Core
Speed 180MHz
Connectivity CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SPI, UART/USART, USB OTG
Peripherals Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
Number of I/O 168
Program Memory Size 2MB (2M x 8)
Program Memory Type FLASH
RAM Size 256K x 8
Supply Voltage - Operating 1.8V ~ 3.6V
Data Converters A/D 24x12b; D/A 2x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 216-TFBGA
Supplier Device Package 216-TFBGA (13x13)
Base Product Number STM32
Standard Package 960
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1262799-STM32F429NIH6E
Ultra Librarian 3D Model Ultra Librarian STM32F429NIH6E CAD Model

Description

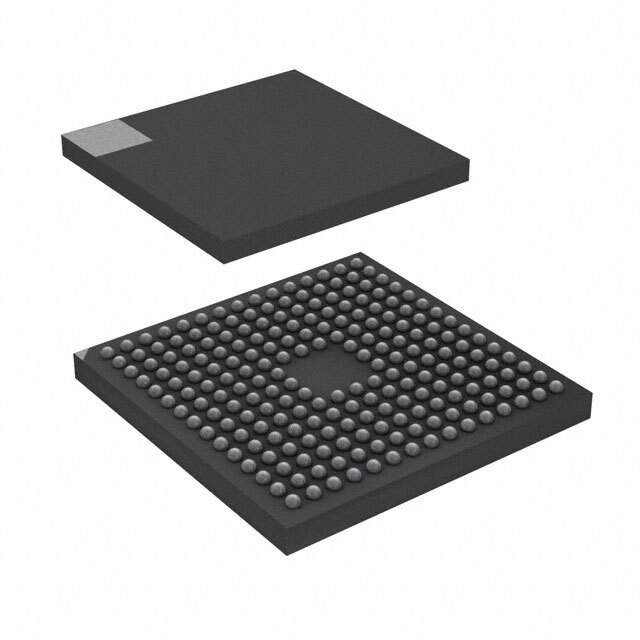

The STM32F429NIH6E is a high-performance advanced line microcontroller from STMicroelectronics that is part of the STM32F4 series. This microcontroller is built on the high-performance ARM® Cortex®-M4 32-bit RISC core operating at a frequency of up to 180 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all ARM single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.

The STM32F429NIH6E integrates a range of enhanced peripherals and I/Os, and combines it with an extensive set of development tools to create a versatile and powerful solution for a wide variety of applications. It comes equipped with up to 2 Mbytes of Flash memory and up to 256+4 Kbytes of SRAM. The device also supports a range of flexible memory options, including a Quad SPI (Serial Peripheral Interface) for connecting to external high-speed memories.

One of the standout features of the STM32F429NIH6E is its advanced graphics capabilities, including the Chrom-ART Accelerator™ for enhanced graphic performance. It also has an LCD-TFT controller that makes it an ideal choice for advanced user interfaces and can drive direct or indirect graphical LCD TFT displays. The microcontroller's connectivity options are extensive, featuring I2C, SPI, USART, UART, CAN, and USB OTG HS/FS interfaces.

For improved real-time performance, the STM32F429NIH6E includes timers, an analog-to-digital converter (ADC) with up to 12-bit resolution, and a digital-to-analog converter (DAC). Its comprehensive set of power-saving modes allows the design of low-power applications. With its robust design, the STM32F429NIH6E operates in the -40°C to +85°C temperature range, making it suitable for the demanding requirements of industrial and high-temperature applications.

Developers can take advantage of the extensive STM32 ecosystem, which includes both hardware and software tools to expedite the development process. The STM32F429NIH6E is supported by a range of development environments and tools including IAR, Keil, and GCC-based IDEs.

In conclusion, the STM32F429NIH6E microcontroller is a powerful and flexible solution that provides the perfect blend of performance, features, and power efficiency, suitable for a wide range of applications, from complex user interfaces to real-time applications and advanced connectivity solutions.
