Products specifications

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr STMicroelectronics
Series STM32F4
Package Tape & Reel (TR)
Core Processor ARM® Cortex®-M4
Core Size 32-Bit Single-Core
Speed 180MHz
Connectivity CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SDIO, SPI, UART/USART, USB, USB OTG
Peripherals Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
Number of I/O 114
Program Memory Size 1MB (1M x 8)
Program Memory Type FLASH
RAM Size 384K x 8
Supply Voltage - Operating 1.7V ~ 3.6V
Data Converters A/D 24x12b; D/A 2x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 169-UFBGA
Supplier Device Package 169-UFBGA (7x7)
Base Product Number STM32F469
Standard Package 2,500
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1262875-STM32F469AGH6TR
Ultra Librarian 3D Model Ultra Librarian STM32F469AGH6TR CAD Model

Description

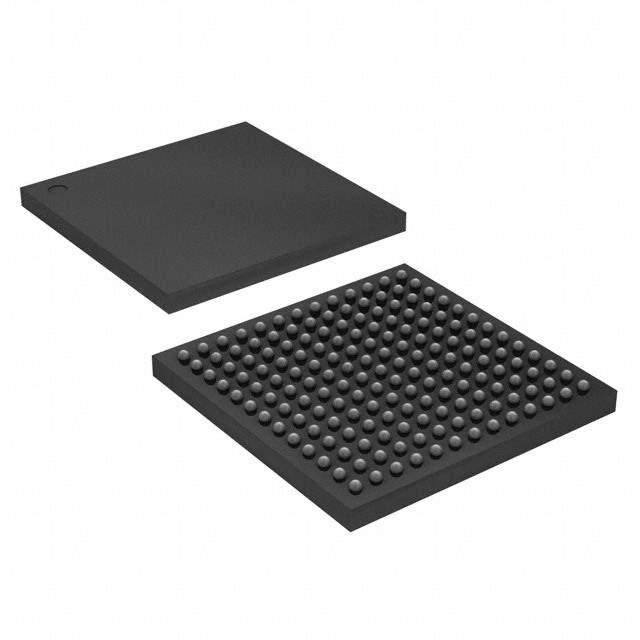

STM32F469AGH6TR Microcontroller - STMicroelectronics

The STM32F469AGH6TR is a high-performance, advanced line microcontroller from the STM32F4 series, produced by STMicroelectronics. This device is built on the Cortex-M4 core with a floating point unit (FPU), which operates at frequencies up to 180 MHz. It is particularly suitable for applications that require a rich user interface with high-speed computation and significant data processing capabilities.

This microcontroller integrates 1 Mbyte of Flash memory and 384 Kbytes of RAM, offering ample storage for complex applications. Its extensive range of enhanced I/Os and peripherals are connected to two APB buses, three AHB buses, and a 32-bit multi-AHB bus matrix, allowing for flexible resource allocation and optimal system performance.

One of the standout features of the STM32F469AGH6TR is its advanced graphics capabilities, supported by the Chrom-ART Accelerator™. This feature, along with the MIPI-DSI host controller and the LCD-TFT controller, make it an ideal choice for advanced graphical interfaces, such as smartphones, tablets, and industrial control panels. The inclusion of a Serial Audio Interface allows for high-quality audio streaming, further enhancing multimedia applications.

For connectivity, this microcontroller supports a range of options including USB OTG HS/FS, Ethernet, camera interface, and several serial communication interfaces such as SPI, I2C, UART, CAN, and SDIO. It also includes a True Random Number Generator (TRNG) for higher security in cryptographic applications.

The STM32F469AGH6TR comes in a UFBGA-216 package and is designed with the flexibility to fit a variety of application needs. It also supports a full set of DSP instructions and a memory protection unit (MPU) which enhances application security. The device is part of a family that shares peripherals and package compatibility, providing scalability and making it easier for designers to upgrade or scale down product features.

All in all, the STM32F469AGH6TR is a powerful microcontroller that offers a perfect blend of performance, memory, and rich peripherals, making it a go-to choice for developers looking to create sophisticated and responsive user experiences in their embedded systems.
