Products specifications

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr STMicroelectronics
Series STM32F7
Package Tray
Core Processor ARM® Cortex®-M7
Core Size 32-Bit Single-Core
Speed 216MHz
Connectivity CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, UART/USART, USB OTG
Peripherals Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Number of I/O 114
Program Memory Size 2MB (2M x 8)
Program Memory Type FLASH
RAM Size 512K x 8
Supply Voltage - Operating 1.7V ~ 3.6V
Data Converters A/D 24x12b; D/A 2x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting SMD (SMT)
Package / Case 144-LQFP
Supplier Device Package 144-LQFP (20x20)
Base Product Number STM32
Other Names STM32F765ZIT7,497-STM32F765ZIT7
Standard Package 360
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1262714-STM32F765ZIT7
Ultra Librarian 3D Model Ultra Librarian STM32F765ZIT7 CAD Model

Description

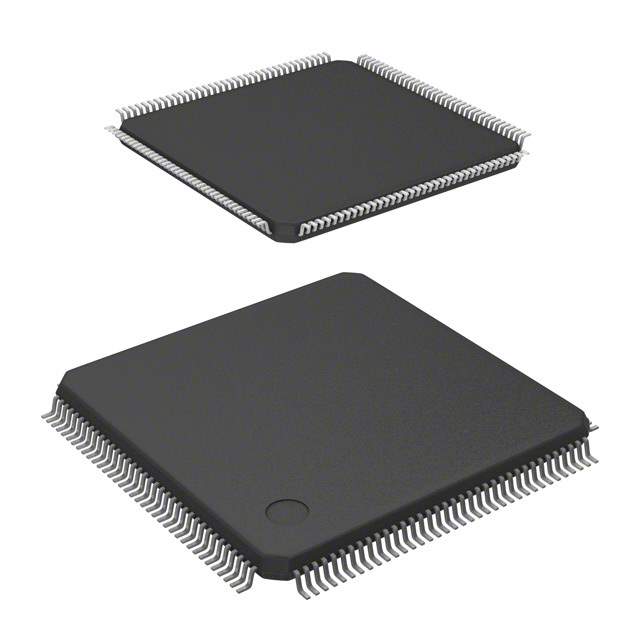

STM32F765ZIT7 Microcontroller by STMicroelectronics

The STM32F765ZIT7 is a high-performance microcontroller that is part of the STM32F7 series, which is manufactured by the renowned STMicroelectronics. This advanced microcontroller is built on the ARM Cortex-M7 processor, the highest-performing member of the energy-efficient Cortex-M processor family, which operates at a frequency of up to 216 MHz. The STM32F765ZIT7 is designed for a wide range of applications, including industrial control, motor drives, medical equipment, and IoT applications, offering a perfect blend of real-time capabilities, digital signal processing, and low-power operation.

The microcontroller features a rich set of peripherals that enable a variety of functionalities. It comes with 2 MB of flash memory and 512 KB of RAM, providing ample storage for complex applications. With multiple advanced connectivity options such as three I2C interfaces, four USARTs, and four UARTs, two CAN interfaces, and an SAI audio interface, the STM32F765ZIT7 is well-equipped to handle communication requirements for sophisticated devices.

Additionally, the STM32F765ZIT7 supports advanced graphics with the Chrom-ART Accelerator™ for enhanced graphic performance, and it also includes an LCD-TFT controller, making it an excellent choice for user interfaces with high-quality displays. For security, the device includes a hardware cryptographic acceleration unit, ensuring secure data communication and protection against unauthorized access.

The microcontroller is also designed with flexibility in mind, featuring a flexible memory controller that supports Compact Flash, SRAM, PSRAM, NOR, and NAND memories. Its 16- and 32-bit timers, alongside the high-resolution timer, provide precision timing for complex waveform generation and timing operations.

For development and debugging purposes, the STM32F765ZIT7 includes a Serial Wire Debug (SWD) and a JTAG interface. It is also supported by a wide range of development tools and software libraries, which are provided by STMicroelectronics to ease the development process for engineers.

In conclusion, the STM32F765ZIT7 microcontroller is a state-of-the-art component that delivers robust performance, comprehensive features, and connectivity options, making it an ideal choice for demanding applications that require a powerful and versatile microcontroller solution.
