Products specifications

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr STMicroelectronics
Series STM32H7
Package Tray
Core Processor ARM® Cortex®-M7
Core Size 32-Bit Single-Core
Speed 480MHz
Connectivity CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG
Peripherals Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
Number of I/O 168
Program Memory Size 2MB (2M x 8)
Program Memory Type FLASH
RAM Size 692K x 8
Supply Voltage - Operating 1.62V ~ 3.6V
Data Converters A/D 36x16b; D/A 2x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 208-LQFP
Supplier Device Package 208-LQFP (28x28)
Base Product Number STM32
Other Names 497-STM32H742BIT6
Standard Package 36
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.31.0001
Win Source Part Number 1262527-STM32H742BIT6
Ultra Librarian 3D Model Ultra Librarian STM32H742BIT6 CAD Model

Description

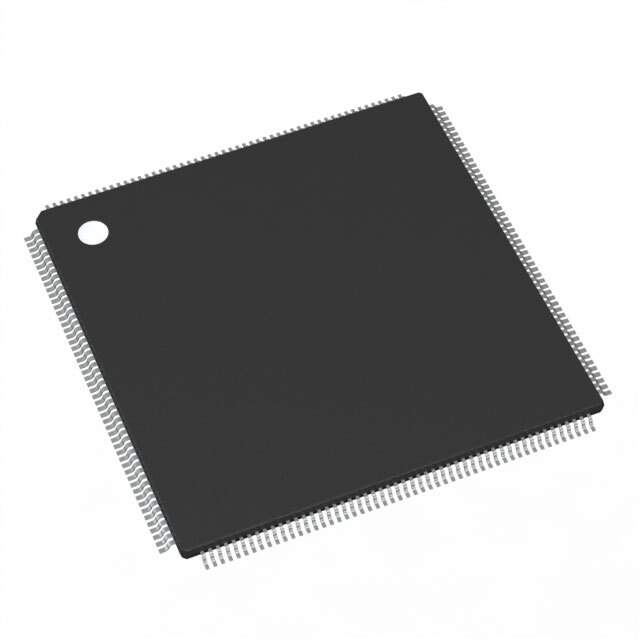

STM32H742BIT6 Microcontroller Overview

The STM32H742BIT6 is a high-performance microcontroller from STMicroelectronics, designed to cater to the demanding needs of modern embedded systems. This advanced microcontroller is part of the STM32H7 series, which is renowned for its state-of-the-art architecture, real-time capabilities, and power efficiency. The STM32H742BIT6 is ideal for applications requiring significant processing power, such as industrial control systems, IoT devices, and complex consumer electronics.

Key Features

  • Core: ARM Cortex-M7 processor with double-precision floating point unit (FPU), achieving a 480 MHz maximum frequency.
  • Memory: 2 Mbytes of Flash memory and 1 Mbyte of RAM, providing ample space for complex applications and data storage.
  • High-Speed I/Os: Multiple I/O ports including USB OTG, Ethernet, CAN, SDMMC, and camera interface, offering extensive connectivity options.
  • Advanced Peripherals: A comprehensive set of peripherals such as multiple timers, ADCs, DACs, and more, enabling a broad range of functionalities.
  • Power Efficiency: Designed with energy-saving modes like Sleep, Stop, and Standby, to optimize power consumption for battery-powered devices.

Performance and Integration

The STM32H742BIT6 microcontroller delivers exceptional performance thanks to its Cortex-M7 core, which can run at up to 480 MHz. The inclusion of a double-precision FPU enhances the computational capabilities, making it suitable for complex mathematical operations. Its advanced Chrom-ART Accelerator™, along with the L1 cache, enhance the overall performance, particularly in graphical applications.

Development Support

STMicroelectronics provides extensive development support for the STM32H742BIT6 with its comprehensive software HAL library, various development tools, and real-time operating system (RTOS) support. Developers can leverage the STM32Cube ecosystem for a faster and more efficient development process.

Package and Quality

The STM32H742BIT6 comes in an LQFP176 package, which is suitable for PCBs with space constraints while still offering a high number of GPIOs. STMicroelectronics ensures high-quality standards, with the device being suitable for industrial temperature ranges and rigorous applications.
