Products specifications

Category Integrated Circuits (ICs)>Embedded - Microprocessors
Mfr STMicroelectronics
Series STM32MP1
Package Tray
Core Processor ARM® Cortex®-A7
Number of Cores/Bus Width 1 Core, 32-Bit
Speed 209MHz, 650MHz
Co-Processors/DSP ARM® Cortex®-M4
RAM Controllers DDR3, DDR3L, LPDDR2, LPDDR3
Graphics Acceleration Yes
Display & Interface Controllers HDMI-CEC, LCD
Ethernet 10/100Mbps (1)
USB USB 2.0 (2), USB 2.0 OTG+ PHY (3)
Voltage - I/O 2.5V, 3.3V
Temperature Range - Operating -40°C ~ 125°C (TA)
Security Features ARM TZ

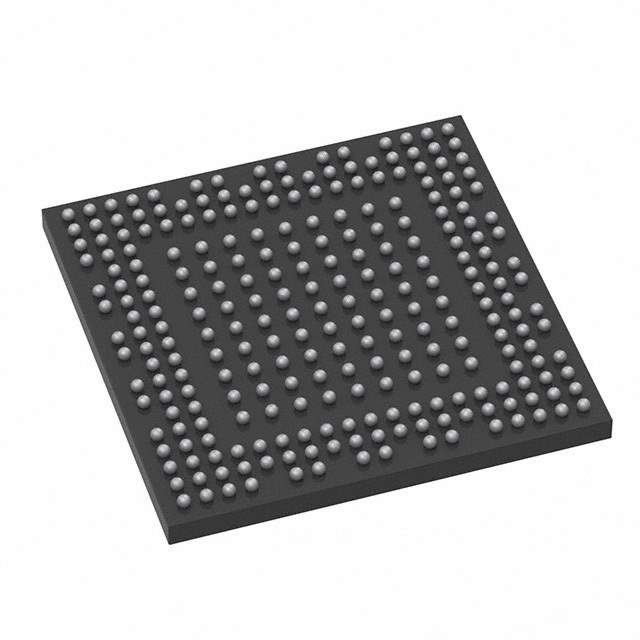

Package / Case 257-TFBGA
Supplier Device Package 257-TFBGA (10x10)
Additional Interfaces CAN, Ethernet, I²C, MMC/SD/SDIO, SPDIF, SPI, UART, USB
Base Product Number STM32
Other Names 497-19107,497-19107,-1138-STM32MP151AAD3,497-STM32MP151AAD3
Standard Package 184
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1261865-STM32MP151AAD3
Ultra Librarian 3D Model Ultra Librarian STM32MP151AAD3 CAD Model

Description

STM32MP151AAD3 - STMicroelectronics

The STM32MP151AAD3 is a highly capable microprocessor from STMicroelectronics, designed to cater to the demanding requirements of industrial, consumer, and medical applications. This versatile processor is part of the STM32MP1 series, which is known for its robust architecture that combines high-performance computing with real-time task handling capabilities.

Key Features

  • Dual-core Configuration: It features a dual-core design with an ARM® Cortex®-A7 core running up to 650 MHz and a Cortex®-M4 core running up to 209 MHz, providing a balance of processing power and energy efficiency.
  • Rich Connectivity: The STM32MP151AAD3 offers a comprehensive set of peripherals for connectivity, including I2C, SPI, UART, CAN, and USB OTG interfaces, ensuring easy integration with a wide range of external devices.
  • Advanced Graphics Support: With its 3D GPU, the processor can handle complex graphics requirements, which is essential for applications with user interfaces such as human-machine interfaces (HMIs).
  • Flexible Memory Options: It supports a range of external memory interfaces, including DDR3L, LPDDR2, LPDDR3, allowing developers to choose the optimal memory solution for their specific application needs.
  • Robust Security Features: Security is a key concern in today's connected world, and the STM32MP151AAD3 is equipped with hardware security features such as a TrustZone® for ARMv7-M, a cryptographic acceleration, and secure boot.
  • Power Efficiency: The processor is designed with power efficiency in mind, featuring dynamic voltage scaling and various power-saving modes to reduce energy consumption.

Applications

The STM32MP151AAD3 is suitable for a wide range of applications, from industrial control systems to smart home devices, and from medical equipment to complex IoT gateways. Its powerful dual-core architecture and rich set of features make it an ideal choice for projects that require high computational power, advanced graphics, and secure, reliable operation.

Whether you are developing an embedded system that requires real-time processing or a sophisticated user interface with touch and display capabilities, the STM32MP151AAD3 provides the flexibility, connectivity, and performance needed to create innovative and efficient products.
