Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microprocessors
Mfr STMicroelectronics
Series STM32MP1
Package Tray
Product Status Active
Core Processor ARM® Cortex®-A7
Number of Cores/Bus Width 1 Core, 32-Bit
Speed 209MHz, 800MHz
Co-Processors/DSP ARM® Cortex®-M4
RAM Controllers DDR3, DDR3L, LPDDR2, LPDDR3
Graphics Acceleration Yes
Display & Interface Controllers HDMI-CEC, LCD
Ethernet 10/100Mbps (1)
SATA -
USB USB 2.0 (2), USB 2.0 OTG+ PHY (3)
Voltage - I/O 2.5V, 3.3V
Temperature Range - Operating -20°C ~ 105°C (TJ)
Security Features ARM TZ
Mounting Type Surface Mount

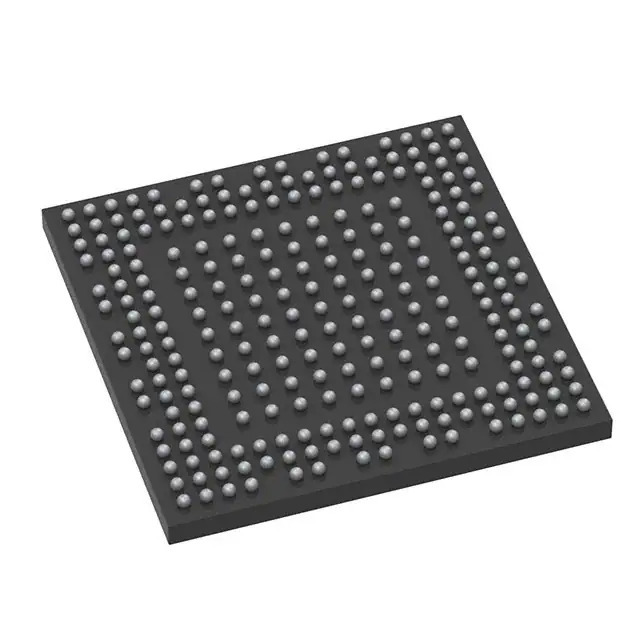

Package / Case 257-TFBGA
Supplier Device Package 257-TFBGA (10x10)
Additional Interfaces CAN, Ethernet, I²C, MMC/SD/SDIO, SPDIF, SPI, UART, USB
Base Product Number STM32
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.31.0001
Win Source Part Number 1368691-STM32MP151FAD1
Ultra Librarian 3D Model Ultra Librarian STM32MP151FAD1 CAD Model

Description

The STM32MP151FAD1 is a high-performance microprocessor from STMicroelectronics, designed to cater to a wide range of applications that require intense processing capabilities and flexible integration. This advanced microprocessor is built around a dual-core architecture, featuring an Arm® Cortex®-A7 core running up to 800 MHz and a Cortex®-M4 core running at 209 MHz, providing a balanced combination of real-time control through the M4 core and rich application processing from the A7 core.

One of the standout features of the STM32MP151FAD1 is its extensive set of peripherals and I/Os. It includes multiple multimedia support with a 3D GPU, a TFT LCD controller, and support for camera interfaces, making it an ideal choice for applications such as human-machine interfaces (HMIs), industrial control systems, and consumer electronics. Additionally, it boasts a wide range of connectivity options, including I2C, UARTs, SPI, CAN, and Ethernet, ensuring seamless integration with various external devices and networks.

Security is a crucial aspect of modern microprocessors, and the STM32MP151FAD1 does not disappoint. It comes with hardware security features such as a True Random Number Generator (TRNG), cryptographic acceleration, and secure boot capabilities, providing a robust foundation for secure applications. These features make it suitable for sensitive applications that demand high levels of security, such as point-of-sale systems and IoT devices.

The STM32MP151FAD1 is also designed with power efficiency in mind. It supports multiple reduced power operating modes, allowing for optimized power consumption in various application scenarios. This makes it an excellent choice for portable and battery-powered devices where energy efficiency is paramount.

For developers, STMicroelectronics provides a comprehensive development ecosystem for the STM32MP151FAD1, including software tools, development boards, and a strong community. This support ensures a smooth development process from prototyping to production, significantly reducing time-to-market for products built around this microprocessor.

In summary, the STM32MP151FAD1 from STMicroelectronics is a versatile and powerful microprocessor that offers a perfect blend of performance, integration, security, and power efficiency, making it suitable for a diverse range of applications in the industrial, consumer, and secure computing markets.
