Products specifications

Category Integrated Circuits (ICs)>Embedded - Microprocessors
Mfr STMicroelectronics
Series STM32MP1
Package Tray
Core Processor ARM® Cortex®-A7
Number of Cores/Bus Width 2 Core, 32-Bit
Speed 209MHz, 800MHz
Co-Processors/DSP ARM® Cortex®-M4
RAM Controllers DDR3, DDR3L, LPDDR2, LPDDR3
Graphics Acceleration Yes
Display & Interface Controllers HDMI-CEC, LCD
Ethernet 10/100Mbps, GbE
USB USB 2.0 (2), USB 2.0 OTG+ PHY (3)
Voltage - I/O 2.5V, 3.3V
Temperature Range - Operating -20°C ~ 105°C (TJ)
Security Features ARM TZ

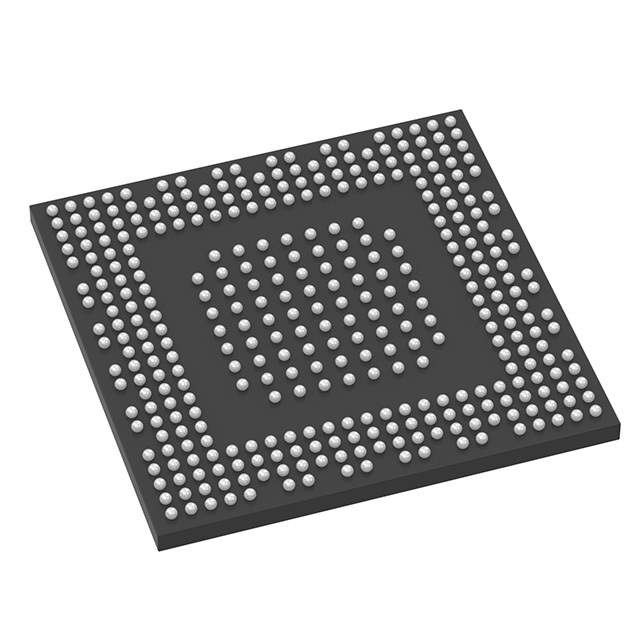

Package / Case 361-TFBGA
Supplier Device Package 361-TFBGA (12x12)
Additional Interfaces CAN, Ethernet, I²C, MMC/SD/SDIO, SPDIF, SPI, UART, USB
Base Product Number STM32
Other Names 497-STM32MP157FAC1
Standard Package 189
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.31.0001
Win Source Part Number 1261839-STM32MP157FAC1
Ultra Librarian 3D Model Ultra Librarian STM32MP157FAC1 CAD Model

Description

The STM32MP157FAC1 is a highly capable microprocessor from STMicroelectronics, designed to offer a balance of power efficiency and performance for a wide array of applications. This product is part of the STM32 family, which is renowned for its high integration, real-time capabilities, and the combination of processor and peripheral set that provides users with a versatile platform for product development.

Key Features

  • Dual-core Processing: At the heart of the STM32MP157FAC1 is a dual-core configuration that includes an ARM® Cortex®-A7 core running up to 800 MHz and a Cortex®-M4 core running up to 209 MHz. This dual-core architecture allows for efficient division of tasks; the A7 core can handle complex OS and high-level computations, while the M4 core is perfect for real-time operations.
  • Advanced Graphics: The microprocessor comes with a 3D GPU that supports OpenGL ES 2.0, making it suitable for applications with graphical user interfaces.
  • Rich Connectivity: A variety of connectivity options are available including Gigabit Ethernet, multiple USB 2.0 ports, and camera interfaces, offering great flexibility for connected applications.
  • Flexible Memory Options: The STM32MP157FAC1 supports a range of external memory interfaces, including DDR3L, LPDDR2, LPDDR3, and NOR, PSRAM, SDRAM, NAND, and QSPI flash memories.
  • Robust Security: Security features such as hardware cryptographic acceleration, a secure boot process, and TrustZone® for ARMv7-M help protect the device against unauthorized access and software piracy.

Applications

With its rich set of peripherals and IOs, the STM32MP157FAC1 can be used in a diverse range of applications, such as:

  • Industrial control systems
  • Home automation
  • Medical devices
  • Complex IoT systems
  • Consumer electronics

Development Support

STMicroelectronics provides extensive support for the STM32MP157FAC1 with a comprehensive ecosystem that includes development boards, software tools, and a strong community. This ensures developers can rapidly prototype and deploy their applications with this reliable and flexible microprocessor.
