Products specifications

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 45V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Max) @ If 550mV @ 15A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 400μA @ 45V
Operating Temperature - Junction 150°C (Max)
Mounting Through Hole
Case / Package TO-247-3
Win Source Part Number 038735-STPS30L45CW
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian STPS30L45CW CAD Model

Description

The STPS30L45CW is a high-performance Power Schottky Rectifier designed and manufactured by STMicroelectronics. This rectifier is tailored for applications requiring efficient and reliable power supply conversion. The device is a dual center tap Schottky rectifier suited for switch mode power supplies and high-frequency DC to DC converters.

Features

  • Voltage Ratings: With a maximum repetitive peak reverse voltage of 45V, the STPS30L45CW is capable of handling moderate voltage requirements in power conversion circuits.
  • Current Capability: This component can withstand an average forward current of 30A, making it suitable for high current applications.
  • Low Forward Voltage Drop: The low forward voltage drop feature ensures high efficiency, which is critical for energy-sensitive designs.
  • High Junction Temperature: With an operating junction temperature range from -40°C to 150°C, the STPS30L45CW is designed to withstand harsh operating conditions.

Applications

The STPS30L45CW is versatile and can be used in a variety of applications, including:

  • Power Supply Management
  • Automotive Converters
  • Power Factor Correction Circuits
  • DC-DC Converters
  • Free-Wheeling Diodes
  • Battery Charging Systems

Package Details

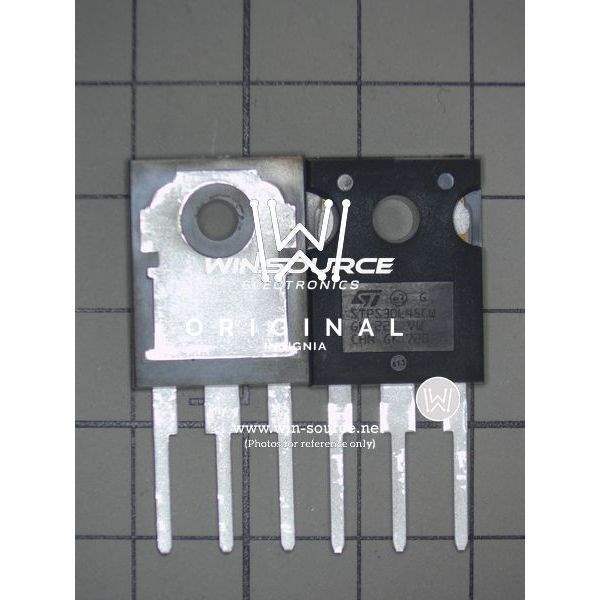

The device comes in a TO-247 package, which is known for its high power dissipation and ease of mounting on heat sinks. This package is ideal for high power density and high efficiency applications.

Quality and Reliability

STMicroelectronics is committed to delivering high-quality products. The STPS30L45CW has undergone rigorous testing to ensure it meets the industry standards for reliability and performance. Customers can trust this rectifier to provide a long-lasting and stable component in their electronic designs.

For detailed information, technical specifications, and application guides, potential users are encouraged to consult the datasheet available on the STMicroelectronics website or contact their support team for further assistance.
