Same model may have multiple batches, images only for reference.

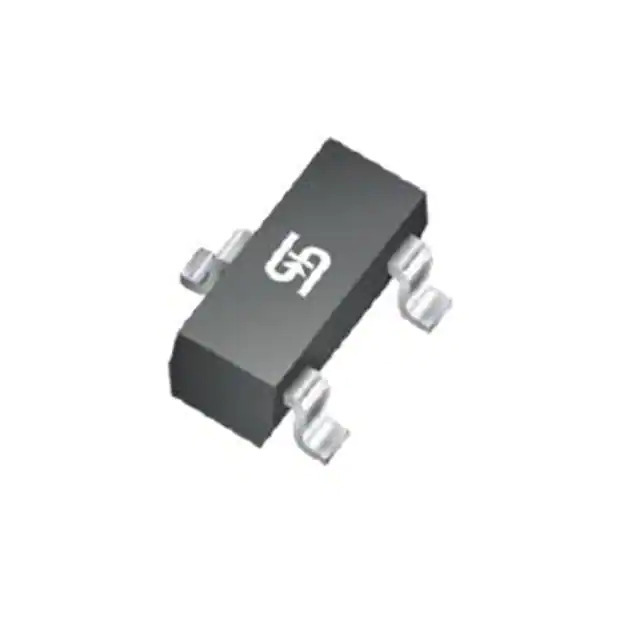

MMBD4148CA RFG Taiwan Semiconductor
Same model may have multiple batches, images only for reference.

MMBD4148CA RFG

Part No MMBD4148CA RFG
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 100V 200MA SOT23
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Taiwan Semiconductor Corporation
Series -
Package Tape & Reel
Product Status Active
Diode Configuration 1 Pair Common Anode
Technology Standard
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) (per Diode) 200mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 10 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 4 ns
Current - Reverse Leakage @ Vr 5 µA @ 75 V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23
Base Product Number MMBD4148
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1367324-MMBD4148CA RFG
Ultra Librarian 3D Model Ultra Librarian MMBD4148CA RFG CAD Model

Description

The 1367324-MMBD4148CA RFG is a diode array from Taiwan Semiconductor Corporation.

  • Application: Discrete Semiconductor Products, Diodes
  • Mounting Type: Surface Mount
  • Package: TO-236-3 (SC-59, SOT-23-3)
  • Reverse Voltage: 100V (Maximum)
  • Rectified Current: 200mA per diode
  • Forward Voltage Drop: 1V @ Rated Current
  • Recovery Time: 4ns (Fast)
  • Leakage Current: 5μA @ Rated Voltage
  • Operating Temperature: -55°C to 150°C
  • Product Status: Active
  • Packaging: Tape and Reel
  • REACH: Unaffected
  • ECCN: EAR99
