Products specifications

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 15V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Max) @ If 420mV @ 40A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 16mA @ 15V
Operating Temperature - Junction 125°C (Max)
Mounting Through Hole
Case / Package MAX247
Win Source Part Number 212391-STPS80L15CY
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian STPS80L15CY CAD Model

Description

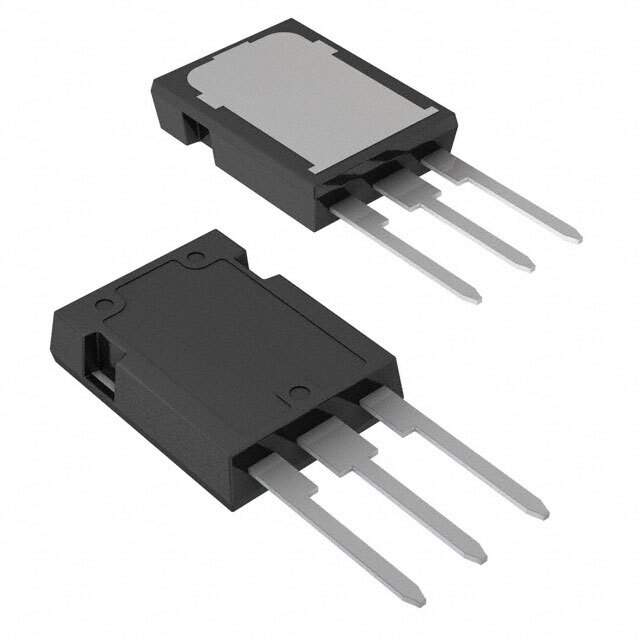

STPS80L15CY - Schottky Rectifier

The STPS80L15CY is a robust and high-efficiency power Schottky rectifier designed by STMicroelectronics, a leader in semiconductor solutions. This component is engineered to meet the demanding requirements of high-frequency power electronics systems. The STPS80L15CY is particularly suitable for switch-mode power supplies, high-efficiency DC-DC converters, freewheeling diodes, OR-ing diode, and reverse battery protection applications.

Key Features

  • High Junction Temperature Capability: This rectifier can operate at junction temperatures as high as 175°C, ensuring reliability and performance under extreme conditions.
  • Low Forward Voltage Drop: The device offers a low forward voltage drop, reducing power loss and improving efficiency, which is crucial for energy-sensitive designs.
  • High Surge Current Capability: With its ability to handle high surge currents, the STPS80L15CY is well-suited for applications that experience occasional overcurrent conditions.
  • Dual Center Tap Configuration: The dual center tap configuration in a TO-220AB package allows for flexibility in circuit designs and simplifies the layout.
  • Insulated Package: The rectifier comes in an insulated package with a voltage rating of 2000V RMS, providing safety and ease of use with reduced insulation requirements.

Applications

  • Switch-mode power supplies (SMPS)
  • DC-DC converters
  • Free-wheeling diodes in motor control circuits
  • Power factor correction circuits (PFC)
  • Automotive applications

The STPS80L15CY stands out with its combination of efficiency, reliability, and versatility, making it an excellent choice for designers looking to optimize their power management systems. STMicroelectronics' commitment to quality ensures that this Schottky rectifier will deliver top performance for a wide range of power applications.

With its advanced technical features and proven durability, the STPS80L15CY is a component that can be relied upon to maintain the integrity and efficiency of your electronic systems.
