Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Series Connection
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Max) @ If 3.6V @ 15A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 35ns
Current - Reverse Leakage @ Vr 20μA @ 600V
Operating Temperature - Junction 150°C (Max)
Mounting Through Hole
Case / Package TOP-3I
Win Source Part Number 037200-STTH1506TPI
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian STTH1506TPI CAD Model

Description

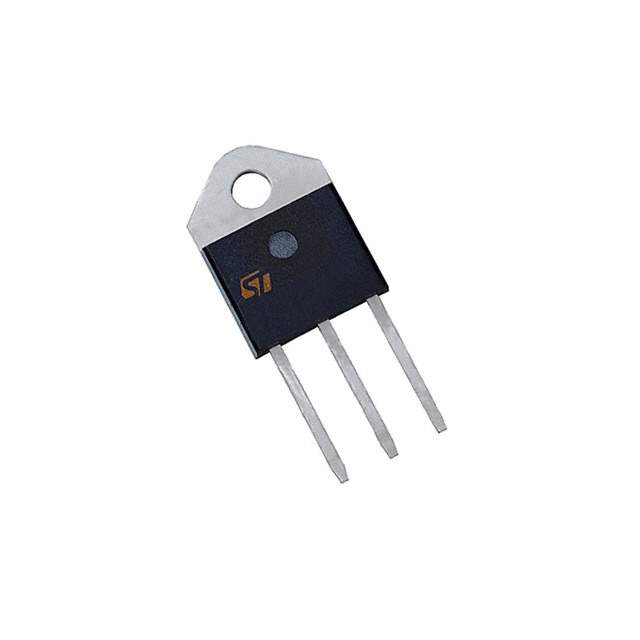

STTH1506TPI - High Efficiency Ultrafast Diode

The STTH1506TPI is a high-performance ultrafast diode designed and manufactured by STMicroelectronics, a global leader in semiconductor solutions. This diode is part of the Turbo 2 ultrafast high voltage series, which is renowned for its low conduction and switching losses. The STTH1506TPI is specifically engineered to enhance the efficiency of high-frequency converters and power supplies.

Key Features

  • High Reverse Voltage Capability: With a repetitive peak reverse voltage (VRRM) of 600V, the STTH1506TPI is suitable for high voltage applications.
  • Ultrafast Switching: The diode has an exceptionally fast reverse recovery time (trr), minimizing energy loss during the switching process and enabling high-efficiency operation.
  • Low Forward Voltage Drop: The device ensures a low forward voltage drop (VF), which reduces conduction losses and improves overall system efficiency.
  • High Surge Current Capability: Its robust design allows for a high surge current capability, ensuring reliability under harsh operating conditions.
  • Insulated Package: The STTH1506TPI comes in an insulated TO-220FP package, providing electrical insulation rated at 2000V RMS. This feature simplifies compliance with safety standards and reduces the need for additional insulation materials.

Applications

The STTH1506TPI is ideal for a variety of applications where high efficiency and reliability are crucial. These include:

  • Switched-mode power supplies (SMPS)
  • Freewheeling diodes in converters and motor control circuits
  • Snubber diodes
  • Power factor correction (PFC) circuits

Reliability and Performance

STMicroelectronics ensures that the STTH1506TPI meets the highest quality and performance standards. The device's robust construction and advanced manufacturing techniques result in a reliable component that can withstand the rigors of demanding industrial and commercial environments. Integrating the STTH1506TPI into your design will contribute to the development of high-performance, energy-efficient products that stand the test of time.

Environmental Compliance

Committed to environmental sustainability, STMicroelectronics has designed the STTH1506TPI to comply with international environmental standards. The diode is RoHS compliant, ensuring that it is free from hazardous substances and suitable for use in green applications.
