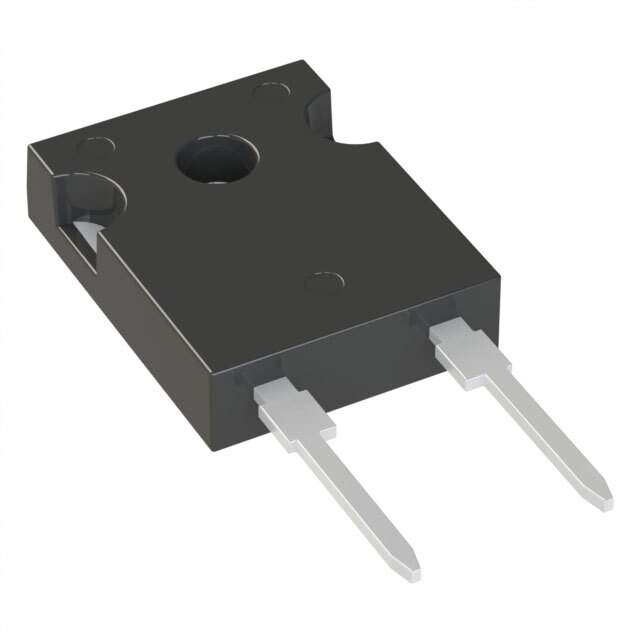

The STTH30S12W, from STMicroelectronics, is a state-of-the-art ultrafast diode, designed specifically to improve the efficiency of high-frequency power conversion systems. This diode is a part of the ST's Turbo 2 series, which is known for its low reverse recovery time (trr) and reduced switching losses.
Key Features
- Voltage Rating: The diode has a repetitive peak reverse voltage (VRRM) of 1200 V, making it suitable for high voltage applications.
- Current Capacity: It can handle an average forward current (IF(AV)) of up to 30 A, ensuring robust performance in demanding situations.
- Ultrafast Recovery: With an extremely fast reverse recovery time, it minimizes energy loss during switching, enhancing the overall efficiency of the application.
- Low Forward Voltage Drop: The STTH30S12W boasts a low forward voltage drop (VF), which reduces thermal and conduction losses.
- High Surge Current Capability: This diode is capable of withstanding high surge currents, providing reliability and stability in the event of transient overloads.
- Insulated Package: The diode comes in an insulated TO-247 package, which offers better thermal performance and simplifies mounting on a heatsink.
Applications
The STTH30S12W is ideal for a variety of applications, particularly where fast switching and power efficiency are crucial. It is commonly used in:
- Switched-mode power supplies (SMPS)
- Power factor correction (PFC) circuits
- Freewheeling diodes in converters and motor control circuits
- Snubber diodes
- High-frequency inverters
Reliability and Performance
STMicroelectronics ensures that the STTH30S12W meets the highest standards of quality and reliability. This diode is manufactured using robust and mature technology, which guarantees performance even under harsh conditions. Its capabilities make it an excellent choice for engineers looking to enhance power efficiency and thermal management in their designs.
