Products specifications

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 60A
Voltage - Forward (Vf) (Max) @ If 1.85V @ 60A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 85ns
Current - Reverse Leakage @ Vr 50μA @ 600V
Mounting Through Hole
Case / Package DO-247
Operating Temperature - Junction 175°C (Max)
Win Source Part Number 038486-STTH6006W
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name STTH6006W
Introduction Date May 18, 2006
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian STTH6006W CAD Model

Description

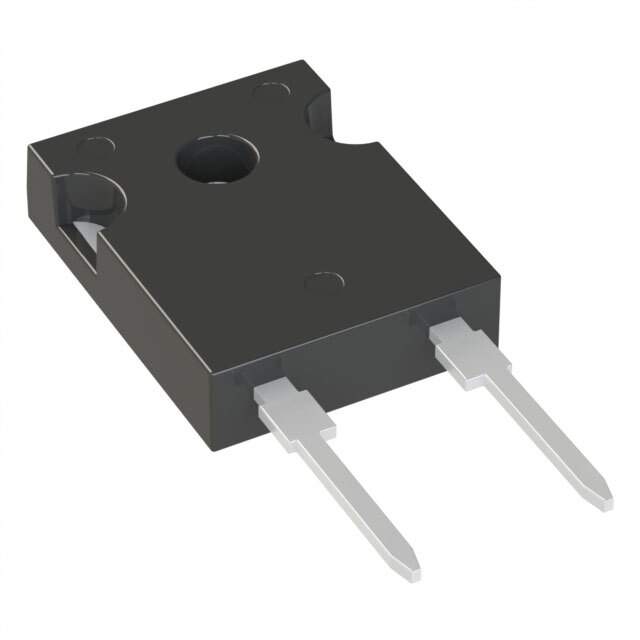

STTH6006W - Ultra-fast High Voltage Rectifier

The STTH6006W, from STMicroelectronics, is an ultra-fast high voltage rectifier that is designed to meet the stringent requirements of high-efficiency power supplies. This device is particularly suited for switch mode applications such as power factor correction (PFC), high-frequency inverters, and freewheeling diodes in energy-efficient power conversion systems.

Key Features

  • Voltage Rating: The STTH6006W is rated for a repetitive peak reverse voltage (VRRM) of up to 600V, making it suitable for a range of high voltage applications.
  • High Current Capability: With an average forward current (IF(AV)) of 60A, this rectifier can handle significant power levels, contributing to its versatility in various power conversion scenarios.
  • Ultra-fast Reverse Recovery Time: The device boasts an extremely fast reverse recovery time (trr) of 35ns, which minimizes losses during switching and enhances overall system efficiency.
  • Low Forward Voltage Drop: It features a low forward voltage drop (VF) to reduce conduction losses, further improving the efficiency of the power supply system.
  • High Surge Current Capability: The STTH6006W can withstand high surge currents, ensuring robust performance during transient conditions.

Applications

This rectifier is ideal for use in a variety of applications, including:

  • Switch Mode Power Supplies (SMPS)
  • Power Factor Correction (PFC) circuits
  • High-frequency inverters
  • Freewheeling diodes
  • Snubber diodes
  • Energy recovery circuits

Package and Quality

The STTH6006W is housed in an insulated TO-247 package, which provides excellent thermal performance and is compatible with high-temperature soldering processes, ensuring reliability and long service life. The device is also compliant with RoHS and Halogen-free directives, reflecting STMicroelectronics' commitment to environmental sustainability.

Conclusion

With its high voltage capability, fast switching speeds, low conduction losses, and robust construction, the STTH6006W is a top choice for engineers looking to enhance the performance and efficiency of their power conversion systems. STMicroelectronics' reputation for producing high-quality semiconductor products ensures that the STTH6006W will deliver reliable and consistent performance.
