Products specifications

Manufacturer STMicroelectronics
Category Discrete Semiconductor Products
Family Diodes,Rectifiers - Arrays
Win Source Part Number 194814-STTH806TTIF5
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian STTH806TTIF5 CAD Model

Description

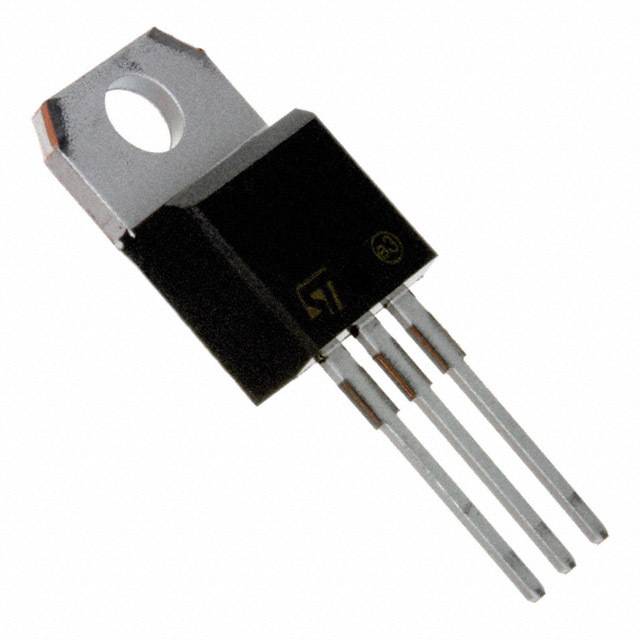

The STTH806TTIF5, crafted by the renowned semiconductor manufacturer STMicroelectronics, is a state-of-the-art ultrafast high voltage rectifier designed for applications that demand high efficiency and reliability. This component is part of STMicroelectronics' Turbo 2 ultrafast high voltage diode family, which is widely recognized for its superior performance in switching applications.

Key Features

  • High Voltage Capability: With a repetitive peak reverse voltage (VRRM) of 600V, the STTH806TTIF5 is well-suited for high voltage operations, making it an ideal choice for power supply and energy conversion systems.
  • Ultrafast Switching: The diode boasts an extremely fast reverse recovery time (trr), typically less than 35 ns, which is crucial for high-frequency switching and minimizes losses in power conversion applications.
  • High Surge Current Capability: It is designed to handle high surge current without failure, ensuring durability and long-term performance under challenging conditions.
  • Low Thermal Resistance: The device's low thermal resistance allows for efficient heat dissipation, contributing to its overall reliability and longevity.
  • Insulated Package: The STTH806TTIF5 comes in an insulated fullPACK package, providing electrical isolation from the heatsink without the need for additional insulation pads.

Applications

This ultrafast rectifier is particularly well-suited for a variety of power management tasks, including:

  • Switched-mode power supplies (SMPS)
  • Free-wheeling diodes in inverters
  • Snubber diodes
  • Power factor correction circuits (PFC)

Quality and Reliability

STMicroelectronics has a reputation for producing components that meet the highest standards of quality and reliability. The STTH806TTIF5 is no exception, with its robust design and manufacturing process ensuring that it performs consistently even in the most demanding environments.

Environmental Compliance

The STTH806TTIF5 complies with various environmental regulations, including RoHS and REACH, reflecting STMicroelectronics' commitment to environmental sustainability and ensuring that the product is suitable for use in a wide range of markets worldwide.
