Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Max) @ If 2.9V @ 8A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 45ns
Current - Reverse Leakage @ Vr 30μA @ 600V
Mounting Through Hole
Case / Package TO-220AC ins
Operating Temperature - Junction 175°C (Max)
Win Source Part Number 054318-STTH8R06DIRG
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian STTH8R06DIRG CAD Model

Description

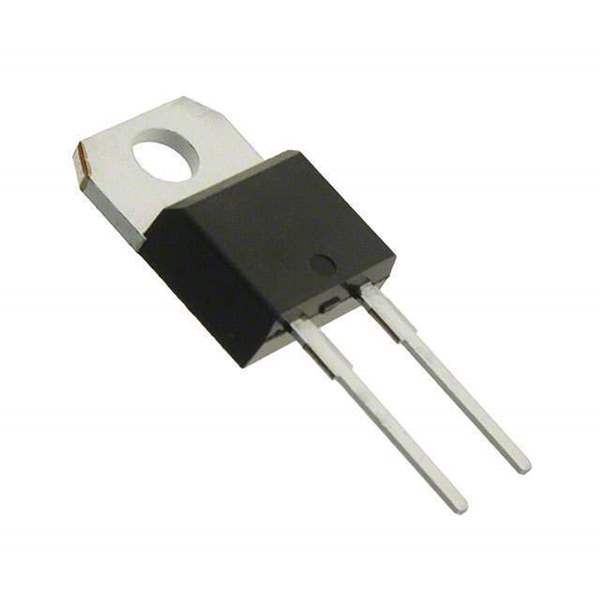

STTH8R06DIRG - Ultrafast Recovery Diode from STMicroelectronics

The STTH8R06DIRG is a high-performance ultrafast recovery diode designed and manufactured by STMicroelectronics, a leader in the semiconductor industry. This diode is specifically engineered to meet the demanding requirements of high-efficiency power supply applications where low conduction and switching losses are essential.

With a reverse voltage of 600V and an average forward current of 8A, the STTH8R06DIRG is capable of handling high power and surge currents without compromising its integrity or performance. Its ultrafast recovery time of less than 35ns makes it an ideal choice for high-frequency operations, which is crucial for modern switch-mode power supplies and converters.

The diode's silicon structure is optimized for reduced forward voltage drop and minimal reverse recovery time. This results in increased efficiency and reduced thermal stress on the component, making it suitable for high-density circuit designs. Furthermore, the STTH8R06DIRG features a low leakage current, which enhances its reliability over a wide temperature range and contributes to energy savings in standby or idle modes.

Encased in an insulated TO-252 (DPAK) package, the STTH8R06DIRG offers excellent thermal performance and is easy to integrate into various circuit layouts. Its package is designed for optimal heat dissipation, ensuring stable operation even under high current conditions. The device is also RoHS compliant, aligning with environmental standards and regulations for electronic components.

Applications for the STTH8R06DIRG are diverse, ranging from power management in consumer electronics to industrial automation systems. It is particularly well-suited for use in switched-mode power supplies, power factor correction circuits, freewheeling diodes in converters, and high-frequency inverters.

In summary, the STTH8R06DIRG from STMicroelectronics is a robust and efficient ultrafast recovery diode that offers designers a reliable solution for improving the performance and efficiency of their power supply circuits. Its advanced features and compliance with environmental standards make it a smart choice for a wide range of electronic applications.
