Products specifications

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 44 Weeks
Features USB, Type-C Controller PMIC 24-QFN (4x4)
Manufacturer STMicroelectronics
Package Reel - TR
Operating Temperature Range -40°C ~ 105°C
Mounting Surface Mount
Package 24-VFQFN Exposed Pad
Case / Package 24-QFN (4x4)
Family Name STUSB1602
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 497-17648-6, STUSB1602AQTR-ND, 497-17648-1, 497-17648-2
Quantity per package 4000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 898504-STUSB1602AQTR
Ultra Librarian 3D Model Ultra Librarian STUSB1602AQTR CAD Model

Description

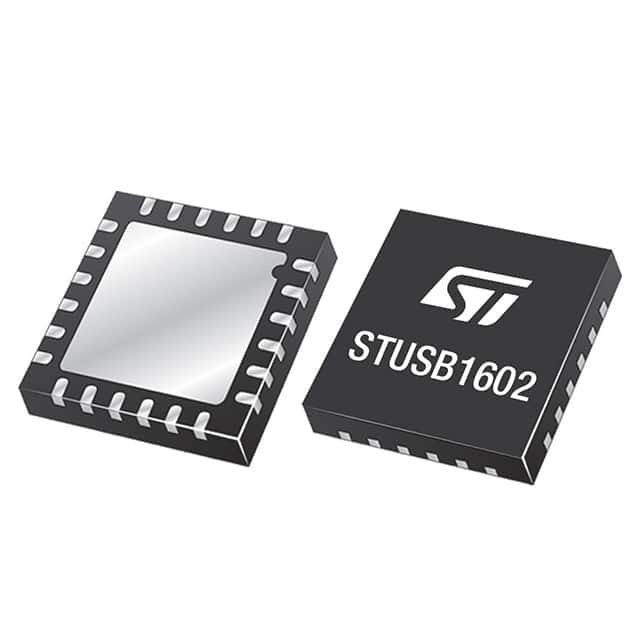

STUSB1602AQTR USB Type-C Controller Overview

The STUSB1602AQTR is a state-of-the-art USB Type-C controller designed by STMicroelectronics to provide a comprehensive solution for managing USB Type-C ports with USB Power Delivery (PD) capabilities. This advanced IC is tailored to facilitate the design and implementation of USB PD applications, ensuring that devices can offer the latest in USB technology with ease and reliability.

Key Features

  • USB Type-C and Power Delivery Compliance: The STUSB1602AQTR is fully compliant with the USB Type-C 1.2 and USB PD 2.0 specifications, ensuring compatibility with the latest USB Type-C devices and chargers.
  • Integrated Power Role Management: It supports flexible power role swapping, acting as either a Source, Sink, or Dual-Role Power device, which is crucial for versatile power management in modern electronics.
  • Dead Battery Management: The device is capable of operating even when the system's battery is completely discharged, providing a reliable user experience.
  • Enhanced Protection Features: It includes overvoltage, overcurrent, and short-circuit protection to safeguard both the controller and the connected devices from electrical hazards.

Applications

The STUSB1602AQTR is ideal for a wide range of applications that require USB Type-C connectivity with power delivery. This includes:

  • Smartphones and tablets
  • Laptops and ultrabooks
  • Power banks
  • Wall chargers and docking stations
  • Industrial and automotive systems

Technical Specifications

  • Package: The device comes in a QFN-24 package, providing a compact footprint for space-constrained applications.
  • Temperature Range: It operates over an industrial temperature range, making it suitable for harsh environments.
  • Communication: The controller interfaces with the system's microcontroller via I2C for configuration and status monitoring.

In summary, the STUSB1602AQTR by STMicroelectronics is an advanced USB Type-C and PD controller that empowers designers to incorporate the latest USB features into their products, ensuring high compatibility, flexibility, and protection for end-users.
