Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Triac Type Alternistor - Snubberless
Voltage - Off State 800V
Current - On State (It (RMS)) (Max) 8A
Voltage - Gate Trigger (Vgt) (Max) 1.3V
Current - Non Rep. Surge 50, 60Hz (Itsm) 100A, 105A
Current - Gate Trigger (Igt) (Max) 30mA
Current - Hold (Ih) (Max) 50mA
Configuration Single
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting Through Hole

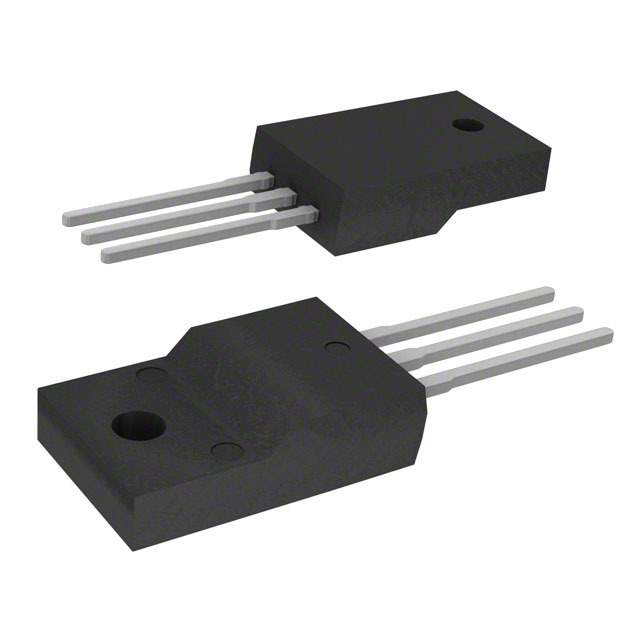

Case / Package ISOWATT220AB
Win Source Part Number 054344-T830-800W
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian T830-800W CAD Model

Description

The T830-800W is a high-performance triac from STMicroelectronics, designed to manage AC loads in a variety of applications. This semiconductor device is capable of switching on and off both parts of an AC waveform, making it ideal for controlling power in electrical circuits. With its 800V blocking voltage capability, it can handle applications that require high voltage operation, ensuring reliability and stability in your designs.

Key Features

  • Voltage Capability: The T830-800W offers a high repetitive peak off-state voltage (VDRM/VRRM) of 800V, suitable for most AC line applications.
  • Current Rating: With an RMS on-state current (IT(RMS)) of 8A, it can control a significant amount of power, making it useful for a wide range of applications.
  • Triggering Gate Current: A low gate trigger current (IGT) allows for the triac to be easily driven by microcontrollers and other logic-level devices.
  • Commutation: The T830-800W is designed for high commutation performance, which means it can handle applications where the load may induce electrical noise and disturbances.
  • Temperature Range: It operates within a junction temperature range of -40°C to +125°C, ensuring performance under extreme conditions.

Applications

The T830-800W triac from STMicroelectronics is versatile and can be used in a multitude of applications. It is particularly well-suited for:

  • Home appliances (such as washing machines, vacuum cleaners, and kitchen appliances)
  • Lighting dimmer circuits
  • Motor control circuits
  • Heating systems
  • AC phase control applications

Quality and Reliability

STMicroelectronics is a global leader in semiconductor solutions, and the T830-800W triac is built with the quality and reliability that customers have come to expect from ST. It is compliant with RoHS and meets international standards for safety and performance, making it a trusted component for your electrical designs.
