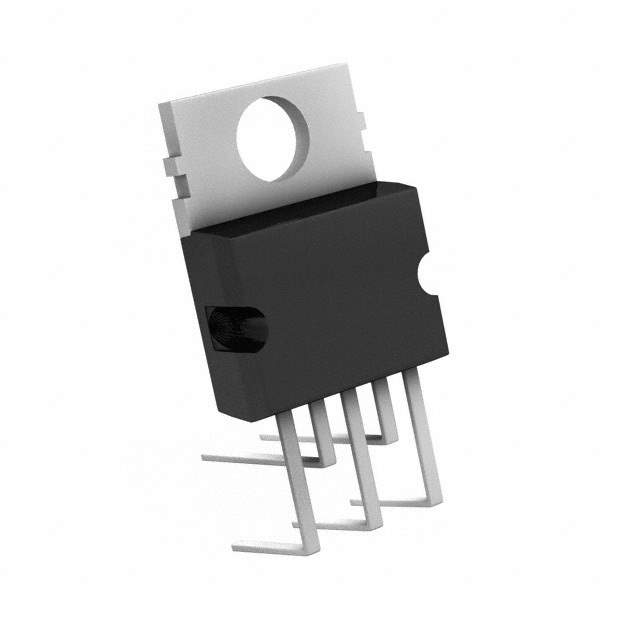

The TDA2030H from STMicroelectronics is a monolithic integrated circuit in Pentawatt® vertical package, intended for use as a low-frequency class AB amplifier. With its high output power capability, the TDA2030H is able to deliver up to 18W of audio power into a 4-ohm load with 0.5% distortion, making it an ideal choice for high-fidelity home audio systems, active speakers, and public address systems.
One of the key features of the TDA2030H is its wide range of supply voltages, from 6V to 36V. This flexibility allows designers to use the same chip in a variety of applications without the need to redesign the power supply. The device also includes a range of protection features such as short circuit protection and thermal shutdown, which contribute to its reliability and robustness in operation.
The TDA2030H provides excellent value with its combination of low harmonic distortion and low noise, resulting in a clean and powerful audio output. Its simplicity of design, requiring only a few external components, makes it an attractive option for both amateurs and professional audio designers. Furthermore, the TDA2030H can be used in bridge-tied load (BTL) configurations to achieve even higher output powers, suitable for more demanding audio applications.
STMicroelectronics' commitment to quality ensures that the TDA2030H meets the highest standards, with the device being rigorously tested before it reaches the market. The TDA2030H is not only powerful but also efficient, with a quiescent current that is low enough to be suitable for battery-powered devices.
In summary, the TDA2030H is a versatile, high-performance audio amplifier that offers both power and fidelity. Its ease of use, combined with the protection features and the pedigree of STMicroelectronics, makes it a top choice for anyone looking to create a reliable and high-quality audio experience.
