Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Type Class AB
Output Type 1-Channel (Mono)
Supply Voltage - Operating 2.2 V to 5.5 V
Features Differential Inputs, Microphone, Shutdown, Standby
Mounting SMD (SMT)
Temperature Range - Operating -40°C to 85°C (TA)

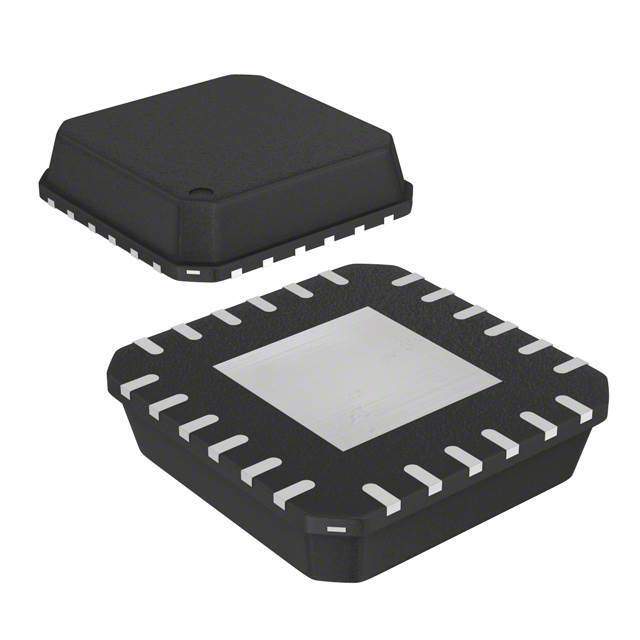

Case / Package 24-QFN (4x4)
Dimension 24-VFQFN Exposed Pad
Win Source Part Number 090456-TS472IQT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TS472IQT CAD Model

Description

Introducing the TS472IQT Microphone Preamplifier IC from STMicroelectronics

The TS472IQT is a state-of-the-art microphone preamplifier integrated circuit (IC) designed and manufactured by STMicroelectronics, a global semiconductor leader. This IC is specifically tailored for the demanding requirements of high-fidelity audio applications, such as mobile phones, tablets, and other portable audio devices. With its low noise and low-power consumption, the TS472IQT stands out as a superior choice for designers looking to enhance the audio performance of their products.

Key Features and Benefits

  • High Performance: The TS472IQT boasts an exceptionally low noise preamplifier with 2.5 dB noise figure at 600 Ω, ensuring crystal-clear audio capture.
  • Adjustable Gain: Design flexibility is provided through an externally controlled gain via a 0 to 4 V voltage on the dedicated pin, allowing for fine-tuning to match specific system requirements.
  • Low Power Consumption: It operates with a supply voltage as low as 1.5 V, making it ideal for battery-powered devices where power efficiency is crucial.
  • Integrated Functions: Featuring an integrated automatic gain control (AGC), a 2-wire serial control interface, and a built-in low-power shutdown mode, the TS472IQT simplifies design and conserves energy.

Technical Specifications

The TS472IQT operates within a temperature range of -40°C to +85°C, accommodating a wide range of environmental conditions. It is available in a small QFN package, measuring just 4x4 mm, which is perfect for space-constrained applications. Additionally, the IC is compatible with a supply voltage range from 1.5 V to 3.6 V, providing versatility for different design architectures.

Applications

The TS472IQT is not only limited to mobile devices; it is also well-suited for other audio systems such as:

  • Headsets and earpieces
  • Conference call systems
  • Security and surveillance equipment
  • Home automation and smart speakers

In conclusion, the TS472IQT from STMicroelectronics represents a blend of performance, efficiency, and versatility, making it an excellent choice for any application requiring superior audio preamplification. Its integration of advanced features in a compact form factor ensures that it can meet the needs of the most demanding audio systems.
