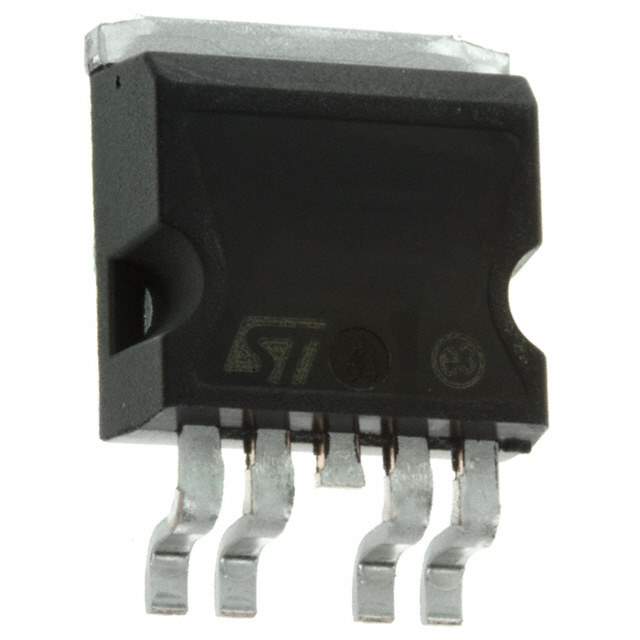

STMicroelectronics VN920B5TR-E High-Side Driver

The VN920B5TR-E from STMicroelectronics is a cutting-edge high-side driver integrated circuit designed for automotive and industrial applications. This robust device is part of ST's VIPower M0-5 family, offering a compact and efficient solution for driving resistive, inductive, and capacitive loads with enhanced power management capabilities.

Key Features

• High-Side Switch: The VN920B5TR-E operates as a high-side switch, allowing it to efficiently control the power supply to various loads.
• Current Limitation: With built-in current limitation, this device provides excellent protection by preventing excessive current from damaging the system.
• Thermal Shutdown: The thermal shutdown feature ensures that the device operates within safe temperature limits, protecting against overheating.
• Load Dump Protection: The VN920B5TR-E is equipped with load dump protection, safeguarding the circuit against voltage spikes that occur when a battery connection is interrupted.
• Low Standby Current: It boasts a low standby current, making it highly suitable for battery-powered applications where power conservation is critical.
• Status Feedback: The device provides real-time diagnostic feedback that can be used to monitor the status of the load, enhancing system reliability.

Applications

The VN920B5TR-E is versatile and can be used in a wide range of applications, including:

• Automotive systems such as lights, heaters, and motors
• Industrial controls
• DC motor drives
• Robotics and automation systems

Package and Quality

Encased in a compact ECOPACK® package, the VN920B5TR-E meets environmentally friendly manufacturing standards, ensuring that it complies with current RoHS directives. The device is manufactured to meet the high-quality standards expected in automotive and industrial environments, ensuring reliability and performance.

In summary, the VN920B5TR-E from STMicroelectronics is an exceptional high-side driver that offers a combination of performance, protection features, and energy efficiency, making it an ideal choice for advanced control of power loads in demanding applications.
