STMicroelectronics VND5050JTR-E Dual Channel High-Side Driver

The VND5050JTR-E, part of STMicroelectronics' VIPower M0-5 family, is a state-of-the-art, dual-channel high-side driver designed to deliver outstanding performance in automotive and industrial applications. This robust device is engineered to drive inductive, resistive, or capacitive loads with high efficiency and reliability, making it an ideal choice for managing a wide range of applications such as automotive lights, heaters, and motors.

Key Features:

• Load Current Capability: The VND5050JTR-E is capable of handling a continuous load current of up to 12A for each channel, providing ample power for a variety of applications.
• High-Side Switch: As a high-side switch, it allows for easy control of power distribution and load disconnection, offering inherent protection against short circuits.
• Integrated Protections: This device includes several protective features such as overcurrent, overtemperature, load dump voltage surge, and undervoltage shutdown, ensuring safe and reliable operation under adverse conditions.
• Diagnostic Functions: Built-in diagnostic capabilities facilitate the detection of open load in OFF-state, output short to VCC, and overtemperature shutdown, simplifying system maintenance and troubleshooting.
• CMOS Compatible Inputs: The input logic is compatible with standard CMOS or LSTTL outputs, which allows for direct interfacing with microcontrollers.

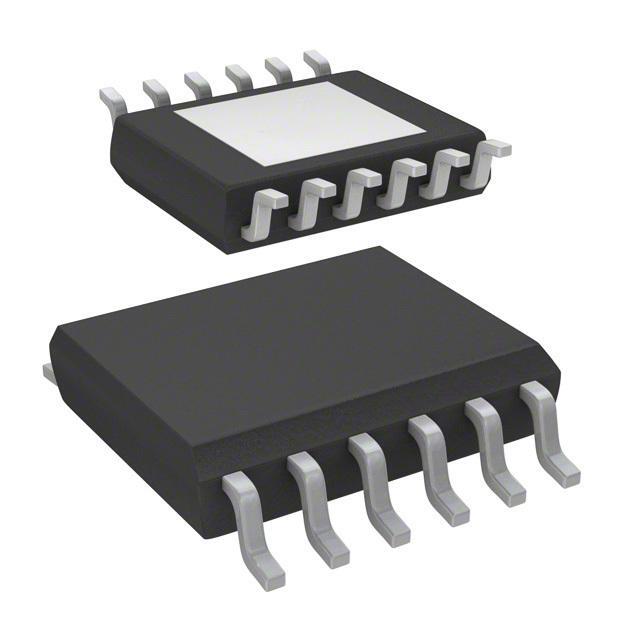

• Package: The VND5050JTR-E is available in a compact and thermally efficient PowerSSO-12 package, which is suitable for space-constrained applications.

Applications:

The VND5050JTR-E's versatility makes it suitable for a broad range of applications, particularly in the automotive sector where it can be used in:

• Car body electronics such as power window lifts, seat positioning, and wiper controls.
• Engine management systems for controlling valves or pumps.
• Lighting systems, including headlights, taillights, and interior illumination.

In the industrial domain, it can be used in automation systems, robotic actuators, and various control circuits that require reliable high-side power switching.

Overall, the VND5050JTR-E is a highly integrated and efficient solution for power driving requirements, offering the robustness and features necessary for the demanding environments of automotive and industrial applications.
