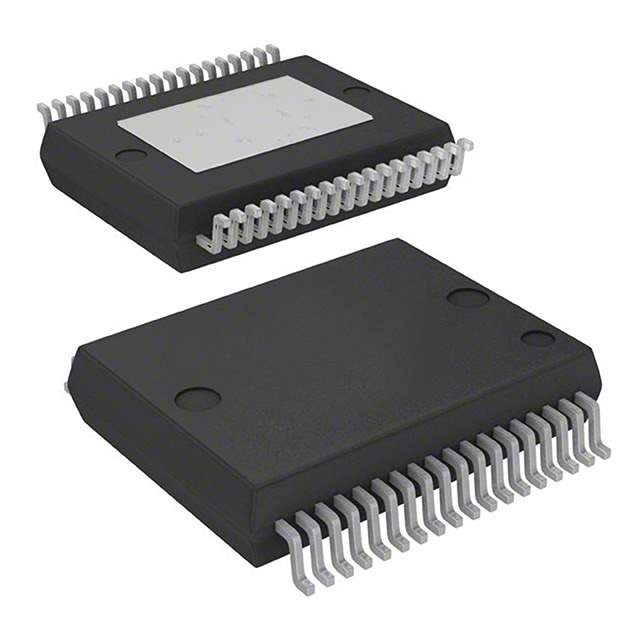

The VND5E025AY-E from STMicroelectronics is an advanced automotive-grade double-channel high-side driver integrated circuit, designed to drive resistive, inductive, and capacitive loads with excellent performance and reliability. This state-of-the-art component is a perfect solution for a wide range of automotive applications requiring high-side load driving capabilities, including but not limited to, headlamps, heaters, and motor controls.

Key Features

• High-Side Switch: The device operates as a high-side switch, providing protection for the load as well as the system by ensuring that the ground path is not interrupted.
• Current Control: It comes with a current-controlled output stage with configurable current limitation, which is essential for protecting the circuit from excessive currents that can lead to overheating or damage.
• Thermal Shutdown: With an intelligent thermal shutdown feature, the VND5E025AY-E ensures safe operation by turning off the output in case of overheating, thus protecting the IC and the load from thermal damage.
• Load Dump Protection: The device is robust against load dump pulses, which are common in automotive environments, ensuring reliable operation during voltage spikes.
• Diagnostic Feedback: It provides diagnostic feedback that includes load current sense, open load detection in on-state, and overtemperature shutdown indication, enabling the system to react to potential issues.
• Compliance: The VND5E025AY-E is fully compliant with the automotive industry's stringent standards for quality and reliability, including the AEC-Q100 qualification.

Applications

The versatility of the VND5E025AY-E allows it to be used in a variety of automotive applications. It is particularly well-suited for driving lamps, including headlights and interior lighting, as well as for controlling resistive loads such as heaters. Additionally, its robust design makes it an excellent choice for motor control applications within the automotive sector.

Conclusion

STMicroelectronics' VND5E025AY-E is a highly reliable and efficient solution for high-side load driving in automotive applications. Its advanced features, including current control, thermal shutdown, load dump protection, and diagnostic feedback, make it an indispensable component for modern vehicle electronics. The VND5E025AY-E represents the cutting-edge of automotive high-side driver technology, ensuring both safety and performance in demanding automotive environments.
