Products specifications

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Reel
Switch Type General Purpose
Number of Outputs 2
Output Configuration High Side
Output Type N-Channel
Interface On/Off
Load Voltage (V) 4V ~ 28V
Supply Voltage Not Required
Current - Output (Maximum) 40A
Rds On 31mOhm
Input Type Non-Inverting
Features Auto Restart, Status Flag
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO
Temperature Range - Operating -40°C ~ 150°C
Manufacturer Package 16-PowerLFSOP
Supplier Device Package PowerSSO-16
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Win Source Part Number 1279604-VND7030AJTR
Manufacturer Homepage www.st.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VND7030AJTR CAD Model

Description

The VND7030AJTR from STMicroelectronics is a state-of-the-art double channel high-side driver designed to drive automotive applications. This component is part of the VIPower M0-7 series and is specifically engineered to control resistive, inductive, or capacitive loads with one side connected to ground. Active VCC pin voltage clamp, loss of ground and loss of VCC protections, and a very low standby current are among its notable features.

This device integrates advanced protective functions such as overcurrent, overtemperature, ESD protection, and load current limitation, making it exceptionally robust and suitable for the most demanding automotive environments. The VND7030AJTR is capable of driving two independent loads with current limitation, and it offers a diagnostic feature that provides feedback on the status of the device and the driven loads. This feedback can be crucial for system monitoring and ensuring the reliability of the application.

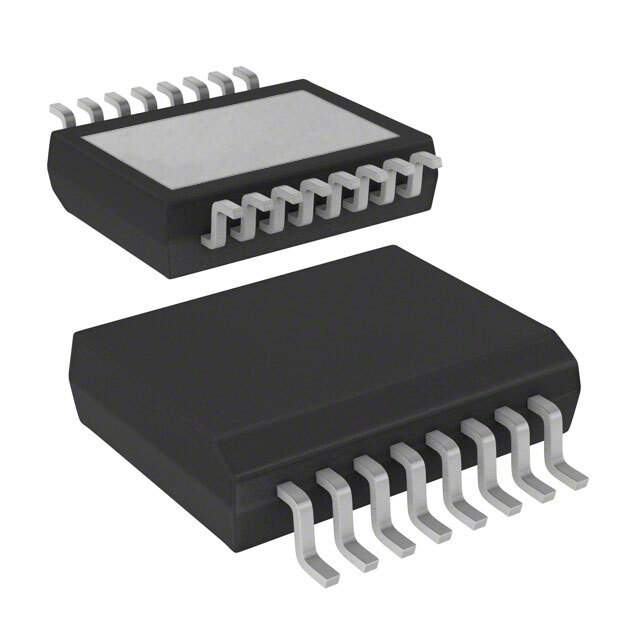

The VND7030AJTR is housed in a compact PowerSSO-16 package, which is highly efficient in terms of space-saving on the PCB. It also features an Off-State Open-Load Detection function, which is critical for identifying potential faults in the system when the driver is not actively powering the load. Furthermore, the device supports fast demagnetization of inductive loads, ensuring a quick and safe shutdown when necessary.

The inclusion of a thermal shutdown with auto-restart ensures that the device remains protected against overheating, thus extending its lifespan and reliability. The VND7030AJTR also offers a very low standby current, which is essential for applications where power conservation is a priority.

In summary, the VND7030AJTR is a highly integrated and protected double channel high-side driver suitable for a wide range of automotive applications. Its robust design, comprehensive protective features, and diagnostic capabilities make it a top choice for engineers who require a reliable and efficient solution for controlling power loads in vehicles.
