The VNH3SP30-E from STMicroelectronics is a full-bridge motor driver that is designed for automotive and industrial applications. This versatile and robust motor driver is capable of driving a wide range of loads including DC motors, relays, and solenoids. It is part of the VIPower M0-3 family and is particularly well-suited for 12V automotive grounded loads.

Key Features

• High Current Capability: The VNH3SP30-E can deliver up to 30A of continuous current, which is ideal for high-power applications.
• Integrated Diagnostics: It comes with comprehensive diagnostic features that help in detecting and protecting against faults such as over-temperature, over-voltage, under-voltage, and overload conditions.
• Thermal Shutdown: An in-built thermal shutdown function ensures the device operates within safe temperature limits.
• Current Sensing: The motor driver includes a current-sensing feature that provides feedback on the motor current, which can be used for monitoring and control purposes.
• High Efficiency: With an optimized design, the VNH3SP30-E ensures high efficiency, which is critical for reducing power losses and improving overall system performance.

Applications

The VNH3SP30-E is suitable for a variety of applications including:

• Automotive applications such as headlight position control, HVAC blowers, and engine cooling fans.
• Industrial applications that require precise control of high-power motors.
• Robotics and automation systems where reliable motor control is essential.

Technical Specifications

• Supply Voltage: 5.5V to 36V
• Output Current (Continuous): 30A
• Output Current (Peak): 45A

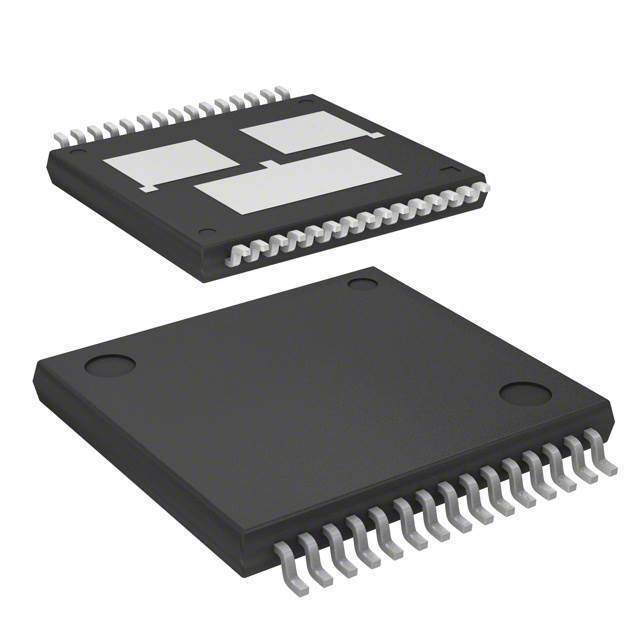

• Package: MultiPowerSO-30

The VNH3SP30-E motor driver is a testament to STMicroelectronics' commitment to providing advanced and reliable solutions for motor control. Its high current capacity and built-in protection features make it an excellent choice for demanding applications that require robust performance and longevity.
