Products specifications

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Motor Type - AC, DC Brushed DC
Purpose Driver - Fully Integrated, Control and Power Stage
Technology Power MOSFET
Applications Automotive
Output Current 30A
Supply Voltage - Operating 5.5 V to 24 V
Voltage - Load 5.5 V to 24 V
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package MultiPowerSO-30
Win Source Part Number 398928-VNH5019A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name VNH5019A-E
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin Malaysia
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian VNH5019ATR-E CAD Model

Description

STMicroelectronics VNH5019ATR-E Motor Driver

The VNH5019ATR-E from STMicroelectronics is a high-power, full-bridge motor driver integrated circuit (IC) designed to deliver efficient drive for automotive DC motors. This robust driver is capable of driving a large current and is most suitable for applications that require reliable control of high-power motors.

Key Features

  • High Load Capability: The VNH5019ATR-E can handle a continuous current of up to 30A, making it ideal for heavy-duty operations.
  • High Voltage Range: It operates within a voltage range of 5.5V to 24V, providing the flexibility needed for various automotive voltage requirements.
  • Thermal Protection: The device includes over-temperature shutdown and load dump protection, ensuring the longevity and reliability of both the motor driver and the motor itself.
  • Current and Voltage Sensing: The VNH5019ATR-E provides real-time feedback on the motor current and voltage, which can be used for monitoring and control purposes.
  • Diagnostic Features: It includes under-voltage and overvoltage shutdown, overcurrent and short circuit protection, and an open-load detection feature, offering comprehensive diagnostic capabilities.
  • Easy Interface: The driver can be easily interfaced with microcontrollers via standard digital input pins, making it user-friendly for a wide range of applications.

Applications

The VNH5019ATR-E motor driver is well-suited for a variety of automotive applications, including:

  • Window lifters
  • Seat Positioning
  • Automated gates
  • Robotics
  • Industrial automation systems

Package and Quality

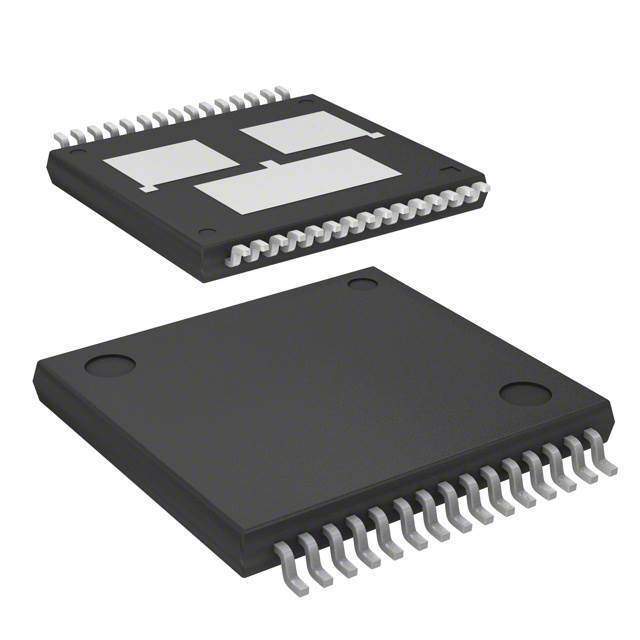

The motor driver comes in a MultiPowerSO-30 package, which is designed to optimize the thermal performance and minimize the PCB space required. Furthermore, the VNH5019ATR-E meets the stringent quality standards expected in the automotive industry, ensuring high reliability and performance under harsh conditions.

Overall, the VNH5019ATR-E from STMicroelectronics represents a powerful solution for designers looking to integrate a robust, high-performance motor driver into their automotive or industrial systems.
