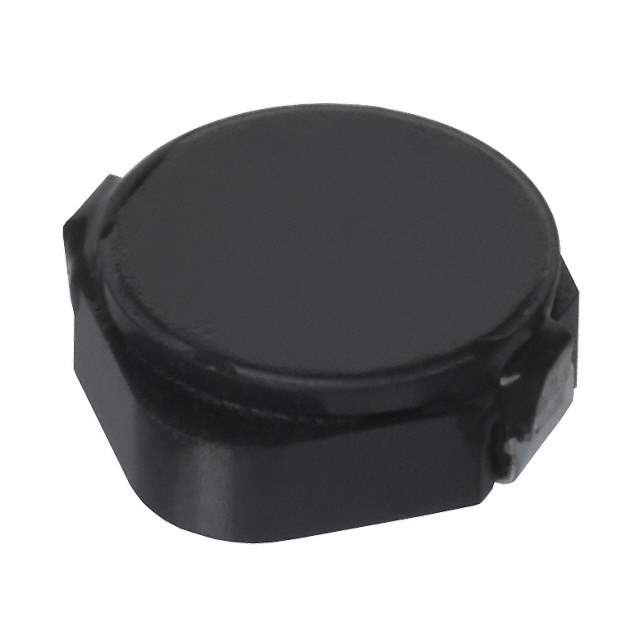

CDPH4D19FNP-3R3MC Real Image
Same model may have multiple batches, images only for reference.

CDPH4D19FNP-3R3MC

Part No CDPH4D19FNP-3R3MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description POWER INDUCTORS
Datasheet
CDPH4D19FNP-3R3MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Series CDPH4D19F
Packaging Reel - TR
Material - Core Ferrite
Inductance 3.3μH
Tolerance ±20%
Current Rating 3.8A
Current - Saturation 1.5A
Shielding Shielded
DC Resistance (DCR) 33 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.193" L x 0.193" W (4.90mm x 4.90mm)
Height - Seated (Maximum) 0.079" (2.00mm)
Win Source Part Number 1160798-CDPH4D19FNP-3R3MC
Manufacturer Homepage www.sumida.com
Popularity Medium
Supply and Demand Status Limited
Family Name CDPH4D19F
Introduction Date August 29, 2006
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian CDPH4D19FNP-3R3MC CAD Model

Description

The Sumida America Components Inc. CDPH4D19FNP-3R3MC is a shielded inductor with an inductance of 3.3μH and current rating of 3.8A.

  • Inductance: 3.3μH
  • Current Rating: 3.8A
  • Core Material: Ferrite
  • Operating Temperature: -40°C to 105°C
  • Package: Nonstandard
  • Mounting: SMD
  • Tolerance: ±20%
  • DC Resistance: 33 mOhm max
  • Popularity: Medium
  • EOL Date: 2024
  • Alternative Parts: LMLP05B5N3R3CTAR, LVS505020-3R3T-N, and LVC505040-3R3T-N
