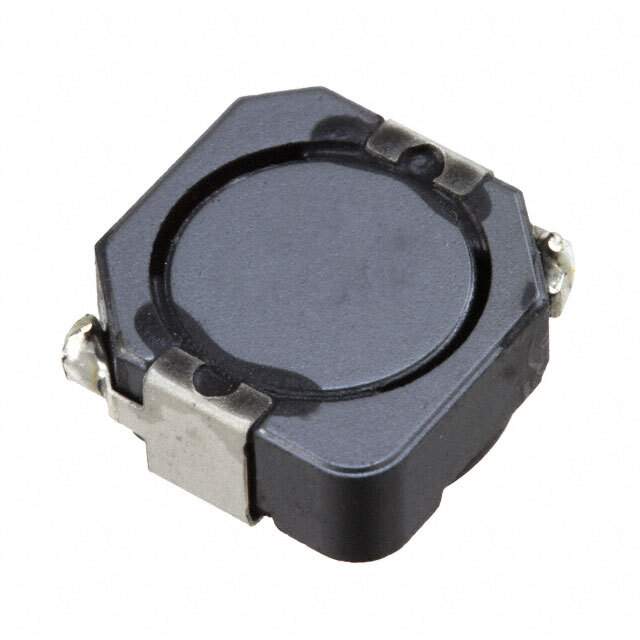

CDRH104RNP-7R0NC Real Image
Same model may have multiple batches, images only for reference.

CDRH104RNP-7R0NC

Part No CDRH104RNP-7R0NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description POWER INDUCTORS (SMD Type)
Datasheet
CDRH104RNP-7R0NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Series CDRH104R
Packaging Reel - TR
Material - Core Ferrite
Inductance 7μH
Tolerance ±30%
Current Rating 4.5A
Current - Saturation 4.8A
Shielding Shielded
DC Resistance (DCR) 27 mOhm Max
Operating Temperature Range -40°C ~ 100°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.402" L x 0.394" W (10.20mm x 10.00mm)
Height - Seated (Maximum) 0.157" (4.00mm)
Win Source Part Number 1160813-CDRH104RNP-7R0NC
Manufacturer Homepage www.sumida.com
Family Name CDRH104R
Introduction Date July 29, 2002
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2024
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDRH104RNP-7R0NC CAD Model

Description

The Sumida America Components Inc. CDRH104RNP-7R0NC is a shielded inductor with an inductance of 7μH and a current rating of 4.5A.

  • Core Material: Ferrite
  • Tolerance: ±30%
  • Operating Temperature: -40°C to 100°C
  • DC Resistance: 27 mOhm Max
  • Size: 0.402" L x 0.394" W (10.20mm x 10.00mm)
  • Mounting: SMD
  • Package Type: Nonstandard
  • Height: 0.157" (4.00mm)
  • Series: CDRH104R
  • Commonly Used: Inductors, Coils, and Chokes
  • Halogen-Free: Compliant
  • Popularity: Medium
  • EOL Date: 2024
