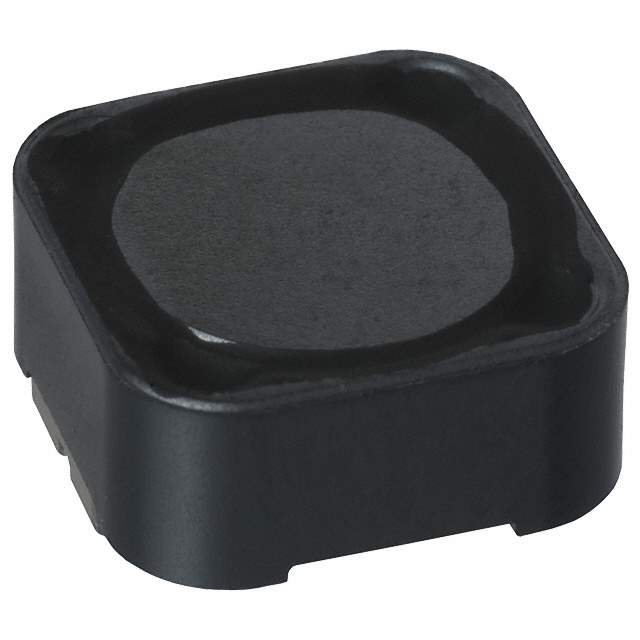

Same model may have multiple batches, images only for reference.

CDRH125NP-470MC

Name: CDRH125NP-470MC
Brand: Sumida America Components Inc.
SKU: 771456
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	CDRH125NP-470MC
Manufacturer	Sumida America Components Inc.
Catalog	Fixed Inductors
Description	FIXED IND 47UH 1.8A 75 MOHM SMD / Inductor Power Shielded Drum Core 47uH 20% 1KHz Ferrite 2.8A 0.075Ohm DCR T/R
Datasheet	CDRH125NP-470MC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Sumida America Components Inc.
Series	CDRH125
Packaging	Reel package
Inductance	47μH
Tolerance	±20%
Current Rating	1.8A
Shielding	Shielded
DC Resistance (DCR)	75 mOhm Max
Operating Temperature Range	-40°C ~ 100°C
Test Frequency	1kHz
Mounting	SMD
Package	Nonstandard
Dimension	0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Maximum)	0.236" (6.00mm)
Win Source Part Number	771456-CDRH125NP-470MC
Popularity	Medium
Supply and Demand Status	Limited
Family Name	CDRH125
Introduction Date	March 25, 2009
ECCN	EAR99
Estimated EOL Date	2025
Ultra Librarian 3D Model	Ultra Librarian CDRH125NP-470MC CAD Model

Alternative Products

Description

The Sumida America Components Inc. CDRH125NP-470MC is a shielded inductor designed for various applications.

Current Rating: 1.8A
Inductance: 47μH
Tolerance: ±20%
DC Resistance: 75 mOhm Max
Operating Temperature Range: -40°C to 100°C
Mounting: SMD
