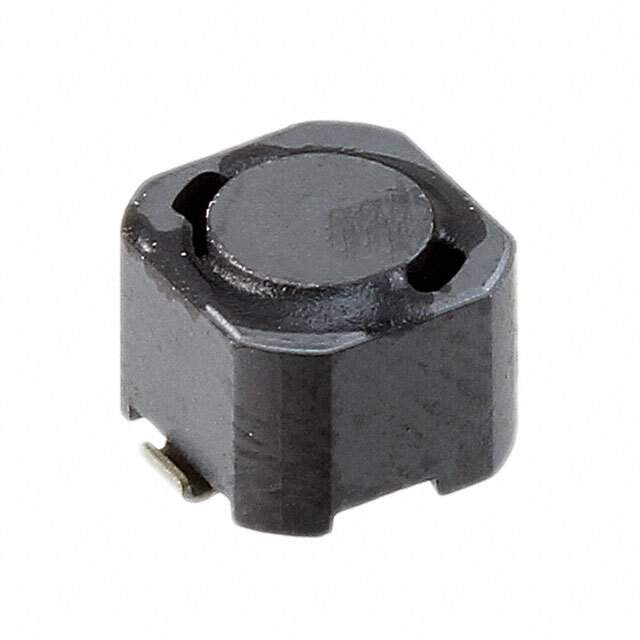

The CDRH64BNP-120MC-B is a fixed inductor manufactured by Sumida America Components Inc. It is designed for use in a variety of power supply and filtering applications, especially where a robust, shielded inductor is needed to minimize electromagnetic interference (EMI).

Applications

• DC-DC Converters.
• Power supplies for electronic devices.
• EMI Filtering Circuits.
• Voltage Regulators.
• Noise suppression in electronic circuits.
• Automotive Electronics.

Features

• Shielded Construction: Reduces electromagnetic interference (EMI).
• High Current Capacity: Designed to handle significant current levels.
• Low DC Resistance (DCR): Minimizes power loss.
• Compact Size: Allows for use in space-constrained applications.
• Surface Mount Technology (SMT): Facilitates automated assembly.

Benefits

• Reduced EMI: The shielded construction minimizes electromagnetic radiation, which can interfere with other components.
• Improved Power Efficiency: Low DCR reduces power loss, improving the overall efficiency of the circuit.
• Space Saving: The compact design allows for placement in tight spaces.
• Reliable Performance: Robust construction ensures stable operation.
• Simplified Assembly: SMT compatibility makes the assembly process easier.

Technical Specifications

The CDRH64BNP-120MC-B has an inductance of 12µH and is designed for surface mount applications. The exact current rating and DC resistance should be verified using the Sumida datasheet. This inductor is particularly useful in environments where EMI reduction is critical. The dimensions are approximately 6.6mm x 6.6mm, with a height that should also be confirmed via the datasheet.

This inductor is ideally suited for applications requiring efficient power conversion and minimal electromagnetic interference. The robust design and compact size make it a versatile choice for a range of electronic devices. Its shielded construction ensures reliable performance in sensitive environments.
