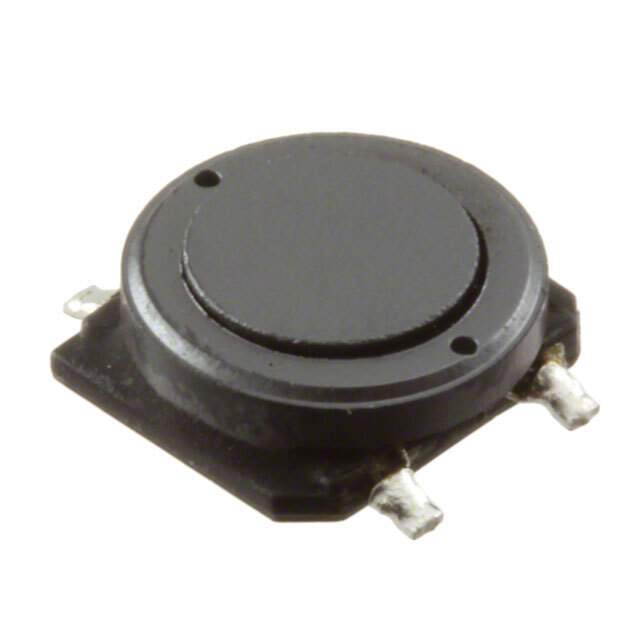

CLS62NP-220NC Real Image
Same model may have multiple batches, images only for reference.

CLS62NP-220NC

Part No CLS62NP-220NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 468MA 355 MOHM / Power Transformer 4 Terminal Gull Wing SMD
Datasheet
CLS62NP-220NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Series CLS
Packaging Reel package
Inductance 22μH
Tolerance ±30%
Current Rating 468mA
Shielding Shielded
DC Resistance (DCR) 355 mOhm Max
Test Frequency 2.52MHz
Mounting SMD
Package 4-SMD
Dimension 0.268" L x 0.260" W (6.80mm x 6.60mm)
Height - Seated (Maximum) 0.098" (2.50mm)
Win Source Part Number 771606-CLS62NP-220NC
Popularity Medium
Supply and Demand Status Limited
Family Name CLS
Introduction Date December 28, 2006
ECCN EAR99
Halogen Free Not Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian CLS62NP-220NC CAD Model

Description

The CLS62NP-220NC is a shielded surface-mount inductor with an inductance of 22µH and a tolerance of ±30%.

  • Current Rating: 468mA
  • Test Frequency: 2.52MHz
  • DC Resistance: 355mOhm max
  • Package: 4-SMD
  • Dimension: 0.268" L x 0.260" W (6.80mm x 6.60mm)
  • Height: 0.098" (2.50mm)
  • Series: CLS
  • Manufacturer: Sumida America Components Inc.
  • Popularity: Medium
  • Supply and Demand Status: Limited
