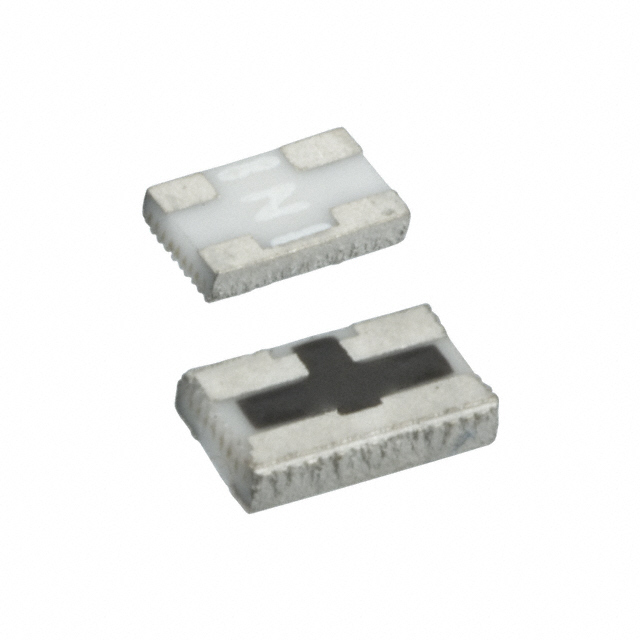

Same model may have multiple batches, images only for reference.
PXV1220S-6DBN1-T02 Susumu – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PXV1220S-6DBN1-T02

Part No PXV1220S-6DBN1-T02
Manufacturer Susumu
Catalog Attenuators
Description RF ATTENUATOR 6DB 50OHM 0805
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Attenuation Value 6dB
Frequency Range 0 Hz ~ 3 GHz
Power (Watts) 63mW
Impedance 50 Ohms
Case / Package 0805 (2012 Metric)
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1495862-PXV1220S-6DBN1-T02
Ultra Librarian 3D Model Ultra Librarian PXV1220S-6DBN1-T02 CAD Model

Description

N
