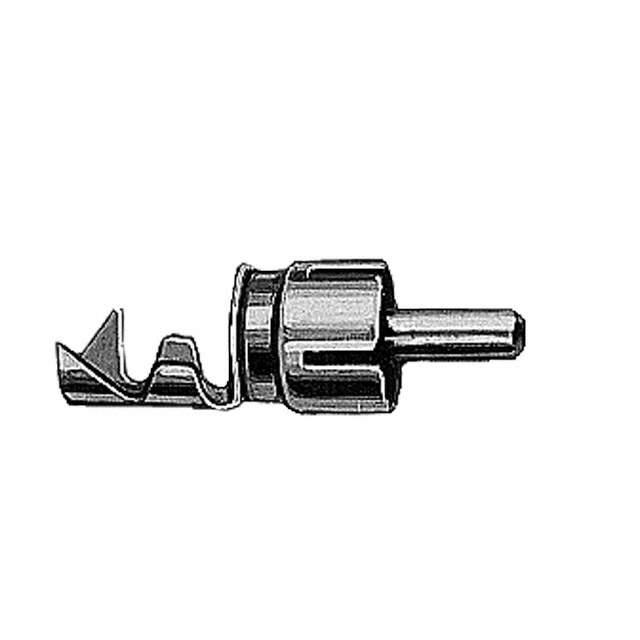

3501MC Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Switchcraft Inc.
Packaging Bulk
Status Obsolete(EOL)
Connector Type Phono (RCA) Plug
Gender Male
Signal Lines Mono
Industry Recognized Mating Diameter 3.20mm ID, 9.00mm OD (RCA)
Actual Diameter 0.125" (3.18mm ID), 0.370" (9.40mm OD)
Number of Positions/Contacts 2 Conductors, 2 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Free Hanging (In-Line)
Termination Solder
Contact Material - Plating Nickel
Body Material Copper Alloy
Body Color Silver
Win Source Part Number 1094677-3501MC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 3501MC CAD Model

Description

The Switchcraft Inc. Phono (RCA) Plug is a male connector with 2 conductors and 2 contacts.

  • Body Material: Copper alloy
  • Contact Plating: Nickel
  • Mounting: Free Hanging (In-Line)
  • Termination: Soldering
  • Industry Mating Diameter: 3.20mm ID and 9.00mm OD (RCA)
  • Actual Diameter: 0.125" (3.18mm ID) and 0.370" (9.40mm OD)
  • Status: Obsolete (EOL)
  • Voltage Rating: None
  • Current Rating: None
  • Internal Switch: No
  • Insulation Color: None
  • Mating Length/Depth: None
